Z30043 3 Inch LCD Display MIPI Interface ST7701S Driver IC 350 Nits 480854 QVGA
Size: 3 inch
Resolution: 480*854
Interface: MIPI
Driver IC
View Angle: IPS
Brightness: 350 cd/m²
Touch Panel: Support CTP/RTP
Supply Type: Factory/Manufacturer
Certification: ISO9001, IATF16949, ROHS, REACH
Overview of Z30043 3 Inch LCD Display MIPI Interface ST7701S Driver IC 350 Nits 480*854 QVGA
1

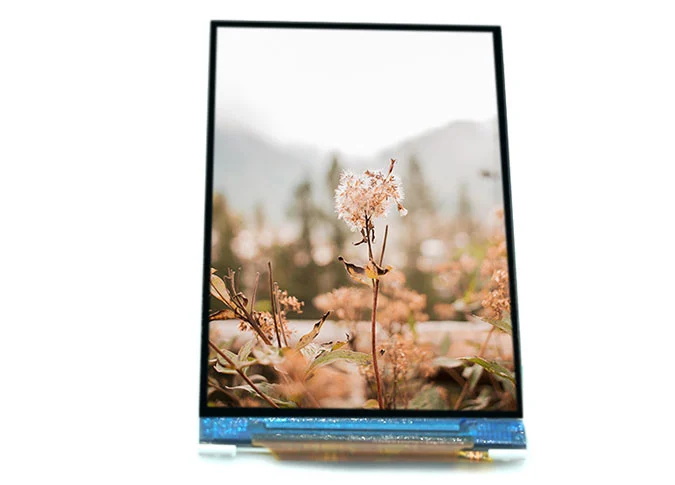

Z30043 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*854 resolution. IPS (In-plane Switching) technique make this 3" LCD module have a wider view angle. This LCD display is built-in ST7701S driver IC. This a-Si TFT LCD module come with MIPI interface, 350 cd/m² brightness.
2
If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, we can also customize for you.
3
Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.
4
The 3 inch LCD screen is medical, dash came, POS, game player, cosmetic instrument, household appliance, QRcode scanner, translator, music player, smart home, industry, etc.
Specifications of 3 Inch LCD Display MIPI Interface ST7701S Driver IC 350 Nits 480*854 QVGA
|
No. |
Item |
Specification |
Unit |
|
1 |
Display Size (Diagonal) |
3.0 |
inch |
|
2 |
Display Resolution |
480 (H) × RGB × 854 (V） |
pixels |
|
3 |
Pixel Pitch |
26 (H) × 78 (V） |
um |
|
4 |
LCM Outline Dimension (Without FPC） |
40.64 (W) × 74.68 (H) ×1.74 (T) |
mm |
|
5 |
LCD Outline Dimension |
40.33 (W) × 72.86 (H) × 0.4 (T) |
mm |
|
6 |
LCD Active Area |
37.44 (W) × 66.61 (H） |
mm |
|
7 |
View Direction (Gray Inversion) |
FULL VIEW |
- |
|
8 |
Driver IC |
ST7701S-G5 |
- |
|
9 |
Pixel Arrangement |
RGB-Stripe |
- |
|
10 |
Display Mode |
Normal Black |
- |
|
11 |
Pixel Driving Element |
a-Si TFT |
- |
|
12 |
LCD Transmittance |
Typ.: 3.5% Min: 3.1% |
- |
|
13 |
LCD Contrast Ratio |
Typ.: 1000 Min: 800 |
- |
|
14 |
FPC Version |
Z30043-R3337F V2 |
- |
|
15 |
Interface |
MIPI |
- |
|
16 |
Operating Temperature |
-20°C~ 70°C |
- |
|
17 |
Storage Temperature |
-30°C~ 80°C |
- |
|
18 |
Backlight Arrangement |
LED/6 Series 1 Parallel (6 lights in total) |
- |
|
19 |
Luminance |
340 |
nit |
|
20 |
Weight |
0.011 |
kg |
As a professional lcd screen company, Zhunyi has high-quality LCD screen for sale. Welcome to contact us if needed.
