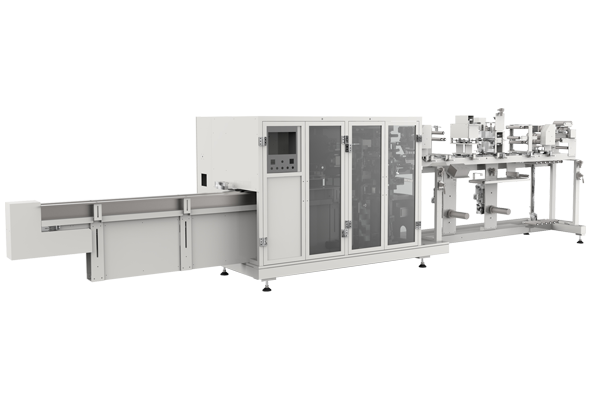

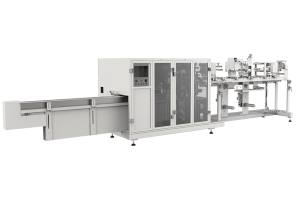

ZB800W Sanitary Napkin/Pad Packing Machine
Soontrue is one of the leading global bundling machine manufacturers devoted to the R&D, manufacture and service of packing machinery. Even since establishment, we are committed ourselves to being the most innovative, responsive and reliable partner, providing high quality, efficient and stable machines and services for our customers.
Specifications of ZB800M sanitary napkin packing machine
|
Model |
ZB800W |
|
|
Packing film |
Max film bag roll diameter |
φ600 mm |
|
Bag roll core diameter |
φ76-78mm |
|
|
Packing film |
Applied film thickness |
0.03mm—0.06mm； |
|
Applied film material |
PE double-side heating film (Re-command) and different hot-sealing film |
|
|
Speed |
Design speed |
70packs/min |
|
Production speed(cotton towel) |
40-55packs/min (varied according to different spec) |
|
|
Power rate |
Motor power rate |
11 Kw |
|
The main motor heating rate |
3.0Kw |
|
|
Packing spec |
L |
100 mm -200 mm（can pack 230mm length after modification） |
|
W |
70 mm -110 mm |
|
|
H |
20mm -80 mm |
|
|
Machine weight |
3000KG |
|
|
Packing qualified product |
≥98% |
|
|
Out dimension |
7000mm×1000mm×2200mm(L×W×H) |
|
|
Power type |
3P380V (3PHASE 4 LINE) |
|
|
Compressed air qty |
6kg/cm2 0.45m3/min |
|
|
Machine noise |
≤75（dB） |
|
Main Features of ZB800M sanitary pad packing machine
Independent drive, fast response speed and precise action;
High-speed operation performance is more stable;
Easy to change parameters;
Perfect docking of front-end automatic equipment;
According to the long-term need to replace the heating wire and high-temperature tape;
Film Adjustment;
Our sanitary pad box packing machines work perfectly well and have been recognized by customers worldwide. Click the button below and contact us now!
