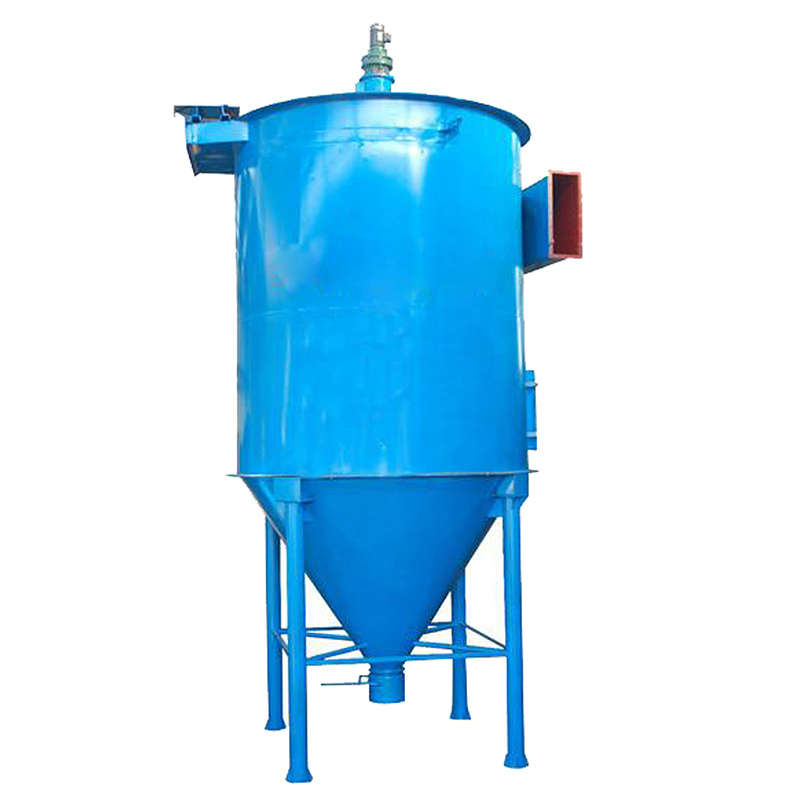

ZC Type Mechanical Rotary Blow Flat Bag Filter
ZC Type Mechanical Rotary Blow Flat Bag Filter Introduction:
The dust collector adopts a circular body structure with uniform force, good anti-knocking performance, compact structure, high-pressure blower and blower cleaning, and is not limited by the air source condition, and uses the resistance to automatically control the blowback dust to save energy and prolong the use of the bag; Regional indoor installations can be installed outdoors in other areas, and can be widely used in many sectors such as machinery, foundry, mining, smelting, building materials, and food chemical.
Users should pay attention to the high temperature, high concentration, fine particles of dust should choose A type, and vice versa B type is appropriate, such as the concentration of more than 15g/m3 should be preceded by a cyclone dust collector(For coarse nuclear dust can be relaxed as appropriate).
ZC Type Mechanical Rotary Blow Flat Bag Filter Model indication:
144ZC-II-500-ANP570 rotary counter blowing flat bag filter.
Item 1: 144 is the number of filter bags (only)
Item 2: ZC refers to the beginning of the pinyin of the rewinding blow, in which "Z" refers to the beginning of the Chinese pinyin of "turning" and "C" refers to the beginning of the Chinese pinyin of "blowing".
Item 3: II- refers to the design number.
Item 4: 500 refers to the length of the bag (meters).
Item 5: According to the different filter speed V, the dust collector is divided into A type and B type size. A type size is used for an air volume of V=1.0~1.5/min. Type B size is used for V = 2.0~2.5/minute air volume.
Item 6: According to the rotating wind direction of the population, it can be divided into N-rotation and S-rotation. N indicates that the inlet rotates counterclockwise, S indicates that the inlet rotates clockwise, and the serialized drawings are rotated counterclockwise (that is, N-rotation).
Item 7: According to the form of the outlet duct, there are two kinds of exits: the flat exit and the lower exit. P means the flat exit, X means the lower exit, and the serialized drawings are drawn as flat exits (that is, P-type).
Item 8: 570 is the nominal filter area (m3).
