Zinc-clad Steel Ground Rod (Wire)
Prix : 10-30USD
Our galvanized steel ground rod, also known as copper or galvanized ground rod, zinc-based alloy composite ground rod is a new type of grounding product based on China's GB50650-2011 petrochemical lightning protection design code. As the main raw material, hot-dip zinc is continuously cast through a special process to form a bimetal composite grounding material. Double Speed Zinc-Clad Steel combines the advantages of zinc strip anodes and traditional hot-dip galvanized grounding materials. Performance and distance cathodic protection.
Zinc-clad steel composite grounding materials can be widely used in grounding and cathodic protection coexistence of petrochemical storage tanks and soils with strong corrosivity, and can also be used as grounding materials for buried other steel facilities.
Features of the zinc-clad steel ground electrode:
Unique manufacturing process: Through a special continuous casting hot-dip galvanizing process, the zinc-clad steel composite ground electrode uses low-carbon steel as the steel core, which not only has high strength and thermal stability of steel, but also has good tensile strength.
Better electrical performance: Zinc, as a coating metal, has 2.5 times the electrical conductivity of steel, and better electrical leakage.
Better anti-corrosion characteristics: Zinc, as a coating metal, has strong corrosion resistance, which greatly extends the use of the grounding grid.
Stronger cathodic protection: due to a certain thickness of zinc layer, it can be used as a sacrificial anode body to protect the ground grid, underground metal facilities and related steel equipment. Grounding, cathodic protection double insurance.
More convenient for construction and installation: special link sleeve or hot-melt welding method, the link is fast and simple, strong, good stability, and the construction efficiency is increased by more than 50%.
Main performance parameters of zinc-clad steel
1. Zinc layer chemical city government composite standard ASTMB418-95 requirements
2. Electrochemical performance indicators
1) Current efficiency> = 95%
2) Open circuit potential (V) <=-1.030 (SCE)</span>
3) Closed circuit potential (V) <=-1.050 (SCE)</span>
3. Contact resistance <= 0.5mΩ</span>
Material |
Zinc-clad steel |
Zinc thickness |
1mm 2mm 3mm 11.5mm |
Pure zinc |
99.9% |
Tensile strength |
>=500N/mm2 |
Flatness |
<=1mm/m</span> |
life |
>=50年 |
Diameter |
10mm---43mm |
Zinc-clad steel ground rod specification
Zinc-clad steel ground rod
Item No. |
Diameter(mm) |
Zinc thickness(mm) |
Length(m) |
Weight (kg) |
BSD-ZCS16 |
16 |
3-5 |
1-3 |
4.53 |
BSD-ZCS18 |
18 |
3-5 |
1-3 |
5.74 |
BSD-ZCS24 |
24 |
3-5 |
1-3 |
10.2 |
BSD-ZCS43 |
43 |
3-11.5 |
1-3 |
30.73 |
Zinc-clad steel ground wire(6m/pcs)
Item No. |
Diameter(mm) |
Zinc thickness(mm) |
Length(m) |
Weight (kg) |
BSD-ZCS10 |
10 |
1-3 |
6 |
3.54 |
BSD-ZCS12 |
12 |
1-3 |
6 |
5.09 |
BSD-ZCS14 |
14 |
1-3 |
6 |
6.9 |
BSD-ZCS16 |
16 |
1-3 |
6 |
9.06 |
BSD-ZCS18 |
18 |
1-3 |
6 |
11.46 |

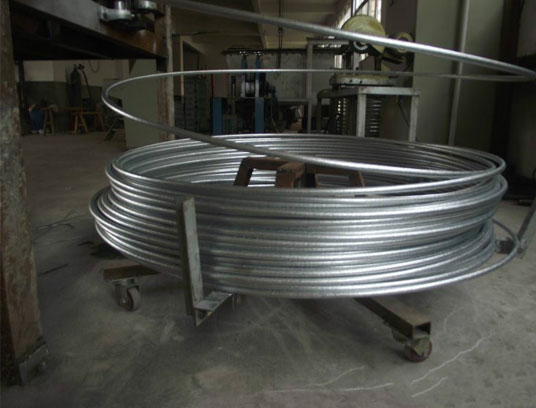

Zinc-clad steel ground wire(100m/roll)
Item No. |
Diameter(mm) |
Zinc thickness(mm) |
Length(m) |
Weight (kg) |
BSD-ZCS10 |
10 |
0.5-1 |
100 |
59 |
BSD-ZCS12 |
12 |
0.5-1 |
|
85 |
Ningbo Zhenhai Beisuda Petrochemical Equipment Co.,Ltd located in Ningbo, Zhejiang, it is a professional zinc rod suppliers, we provide copper clad steel earth rod, zinc rod anodes, pure zinc rod and etc, want to know zinc rod price,please contact us.
Personne à contacter : Yan Max, 0574 86573899
