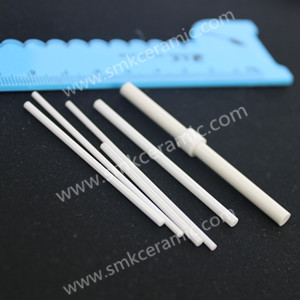

Zirconium Oxide ceramic shaft
Quantité : 30000 Prix : USD1-200
Seamark specialize in researching, developing and providing customized fine ceramic solution, our main material including 96% alumina ceramics (Al2O3),99% alumina ceramics,Zirconia ceramics(ZrO2),Silicon carbide(SiC),Silicon Nitride (Si3N4). Whether you are a tooling manufacture or end user, our specialists are available to provide full engineering and technical support throughout the concept, design, and production stages to ensure maximum performance of our material is obtained.
● high mechanical strength
● high temperature, Max working temperature: 1700C.
● good electrical insulation
● Good chemical corrosion resistance under high temperature.
● Excellent wear and abrasion resistance
● Very hardness and Excellent thermal shock
Zirconia (ZrO2) is an extremely refractory material. Its strong resistance to the high temperature and high pressure, lower ratio of the moisture absorption, stable chemical properties, and its capacity of enduring the corrosion of acid, alkali, and organic solvent make it widely utilized in Petroleum exploration, Mechanical industry, chemical industry, natural gas, Medical equipment and environmental protection fields etc. Compared with alumina, it possesses excellent chemical inertness and corrosion resistance at temperatures well above the melting point of alumina.
Property of Zirconia.
|
Density |
g/cm3 |
6 |
Thermal performance |
Thermal expansion |
X10-6/K |
10 |
|
sintering temperature |
℃ |
1600 |
heat resistance impact force |
T(℃) |
360 |
|
|
Weibull Modulus |
m |
23 |
Thermal Conductivity |
W/mk |
<2</p> |
|
|
Vickers Hardness |
HV0.5 |
1300 |
Thermal shock resistance |
ΔT°C |
270 |
|
|
Flexural Strength |
Mpa |
1000 |
Highest Application Temperature |
°C |
1000 |
|
|
Compressive Strength |
Mpa |
3000 |
electrical characteristics |
Volume Resistivity at 20℃ |
Ωcm |
>10^12 |
|
fracture toughness |
Map.m3/2 |
6-8 |
Dielectric breakdown strength |
KV/mm |
- |
|
|
Modulus of Elasticity |
GPa |
200 |
Dielectric constant |
100MHz(E) |
- |
|
|
Impact Resistance |
MPa.m1/2 |
8 |
1 MHZ dielectric loss Angle at 20℃ |
tanδ |
- |
Choose Seamark Ceramic, we are now able to offer following services:
1. Before sales service: we will reply all your questions or inquiry in time, if you need some suggestion on your project, it will be our pleasure to do it.
2. In contract: our strict quality control is performed in every step of producing; we pay attention on every detail to ensure you are satisfied with our products and service.
3. After sales service: any questions, please let us know by email or phone, we will help you to deal with those problems
We can supply the products according to customer's drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website.
Suzhou Seamark Fine Ceramics Co., Ltd
Mr.Beck Jin
Email: info@smkceramic.com
Tel: +86 512 66255075
Fax: +86 512 66255030
Mob: +86 18550512237
Personne à contacter : Beck Jin, 86 512 66255075
