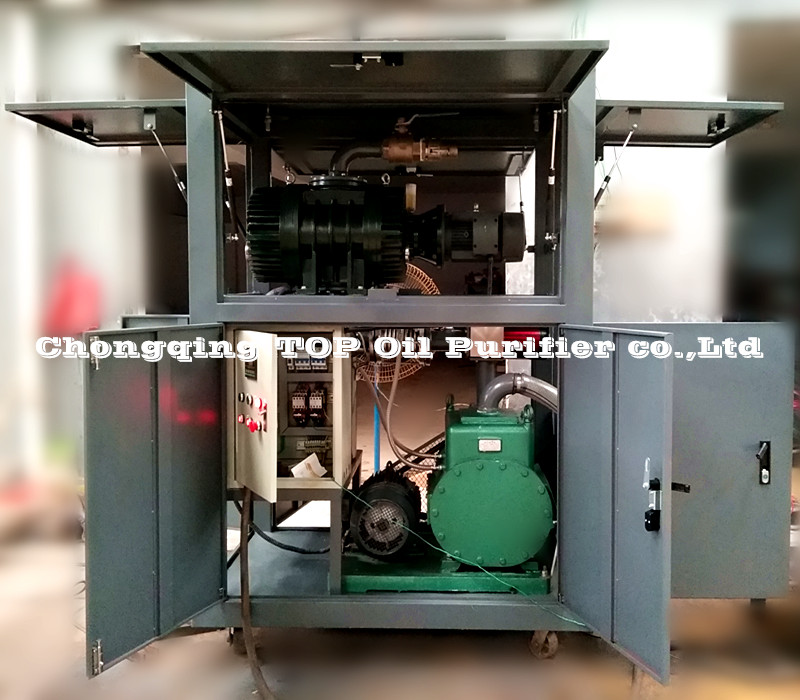

ZKCC Series Vacuum Pump, Transformer Oil Vacuum Pumping Equipment, Roots Pumps
Quantité : 1set Prix : USD5000
Application:
ZKCC is used for producing vacuum condition for various equipment. Its vacuum pressure can reach much lower than any other products in the same field. It is widely used in vacuuming process in the production, installation and maintenance of many electric power equipment, like electric power transformer, capacitor etc. and is also used in the technical process of industrial production such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc.
Feature:
1. The machine adopts special Roots pump and vacuum pump so the vacuum pumping speed and pressure are obviously better than any other devices.
2. Working vacuum range and maximum vacuum degree are superior to other products.
3. Installed with special vacuum gauge for accurate indication.
4. Adopts automatic vacuum relay for automatic control.
5. Stable and reliable operation, low noise, and easy to move.
Technical Parameters
|
Technical Parameter |
ZKCC-30 |
ZKCC-70 |
ZKCC-150 |
ZKCC-300 |
ZKCC-600 |
ZKCC-1200 |
|
Pumping Speed (L/s) |
30 |
70 |
150 |
300 |
600 |
1200 |
|
Pumping Speed (m3/h) |
108 |
252 |
540 |
1080 |
2160 |
4320 |
|
Ultimate partial pressure (Pa) |
5×10-2 |
5×10-2 |
5×10-2 |
3x10-2 |
3x10-2 |
1×10-1 |
|
Ultimate partial pressure (Torr) |
3.7×10-4 |
3.7×10-4 |
2×10-4 |
2×10-4 |
2×10-4 |
8×10-4 |
|
Total Electric Power (kw) |
1.85 |
2.6 |
5.2 |
9.5 |
18.5 |
33 |
|
Main Pump Type |
ZJP-30 |
ZJP-70 |
ZJP-150 |
ZJP-300 |
ZJP-600 |
ZJP-1200 |
|
Front Stage Pump Type |
2X-8 |
2X-15 |
2X-30 |
2X-70 |
2X-70 x 2 |
2X-70 x 4 |
|
Wire size of power supply input ≥(mm2) |
1 |
1.5 |
3 |
4 |
6 |
8 |
|
Power Supply |
50Hz 380V (3phase, 4wire) can be customized |
|||||
|
Intake connection (mm) |
DN50 |
DN80 |
DN100 |
DN160 |
DN200 |
DN250 |
|
Exhaust connection (mm) |
DN34 |
DN60 |
DN70 |
DN90 |
DN70 |
DN90 |
|
Overall Dimensions (cm) |
73×46×100 |
79×55×120 |
105×60×135 |
132×78×150 |
145×86×201 |
168×100×269 |
