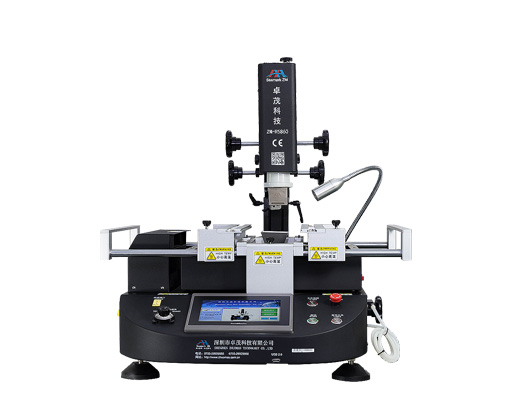

ZM-R5860 Hot Air BGA Rework Station
Quantité : 200 units, Prix : $60~$20,000
Principle And Operation Mode Of Seamark ZM R5860 BGA Machine
ZM R5860c Hot Air BGA Rework Station is a kind of rework station provided by Zhuomao, which has three temperature zone Independently control, convection hot air heating, lower temperature zone height-adjustable, high-precision autonomous control system, high-precision K-type thermocouple with accuracy up to ± 3 ℃, dynamic APR multi-loop closed-loop control selective reflow process. Imported high power constant current integrated cooling fan.
As one of the most reputable BGA Rework Station suppliers, Seamark ZM provides the best BGA Rework Station with good quality. If you want to know seamark ZM R5860 price, please contact us now!
Functions of Zhuomao ZM R5860 Smart BGA Rework Equipment
01 Temperature Curve Setting
High-definition touch screen operation, real-time display and, editing of temperature curves, each group of temperature curves can be set to 8 segments, 100 groups of temperature curves can be stored, with temperature self-organizing function.
02 Laser Red-dot Positioning Guide
Laser indicator for PCB and component positioning.
03 Vacuum Adsorption
The external vacuum suction pen is convenient for taking BGA.
Specification Of Seamark ZM-R5860 Hot Air BGA Rework Station
|
Power Supply |
AC220V±10% 50/60HZ |
|
Power |
5.0KW(Max)，Top heater(0.8KW) Bottom heater (1.2KW)，IR Preheater (2.7KW),Other(0.3KW) |
|
PCB Size |
410*370mm(Max); 10*10mm(Min) |
|
BGA Chip Size |
40*40mm(Max); 10*10mm(Min) |
|
IR Heater Size |
375*285mm |
|
Temperature Sensor |
1 pcs |
|
Operation Method |
7" HD touch screen |
|
Control System |
Autonomous heating control system V1（software copyright） |
|
Alignment System |
Laser dot |
|
Vacuum Adsorption |
Manual |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±3℃ |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L635*W620*H655mm |
|
Weight |
43.5KG |
If you have needs to buy bga x ray machine, please contact us.
