ZnSe

Quantité : 999

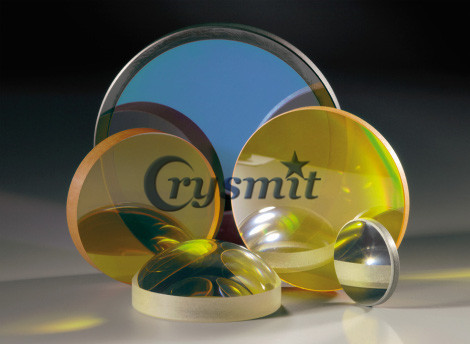

Zinc Selenide (ZnSe) is a preferred material for lenses, windows, output couplers and beam expanders for its low absorptivity at infrared wavelengths and its visible transmission. For high-power applications, it's critical that the material bulk absorption and internal defect structure be carefully controlled, that minimum-damage polishing technology be employed, and the highest quality optical thin-film coatings are used.
Typical Applications:

• CVD laser grade ZnSe and IR grade ZnSe.

• Greater than 90% transmission from 3-12μm.

• Low dispersion and low absorption.

• Ideal for thermal Imaging, FLIR, and medical systems.

• High performance, cost-effective ZnS fabrication.

• Adequate ZnSe substrates and blanks available.

Main Properties

Growing Method

Chemical Vapor Deposition(CVD)

Melting Point

1525℃

Transmission Band

0.6-20um

Bulk Absorption Coefficient

5X10-4cm-1@10.6um

Density

5.268g/cm3

Refractive Index

2.4015 at 10.6um

Young's Modulus

67.2 GPa

Thermal Conductivity

0.18W/cm/℃

Specific Heat

0.356J/g/℃

Thermal Expansion

7.57x10-6/℃ at 20℃

Crysmit supply ZnSe with：

Diameter

+0/-0.10mm

Length

+/-0.2mm

Chamfer

0.20+/-0.10mm @ 45°

Surface Figure (power/irregularity) at 0.63µm

1.0 fringe/0.5 fringe

Parallelism

< 40 arc Seconds

Perpendicularity

< 5 arc min

Surface Quality

40/20Scratch/Dig

Localisation : 118 Yangqiao Road West,Fuzhou,350002,P.R.China, china fujian ,
Personne à contacter : amiee ye,
