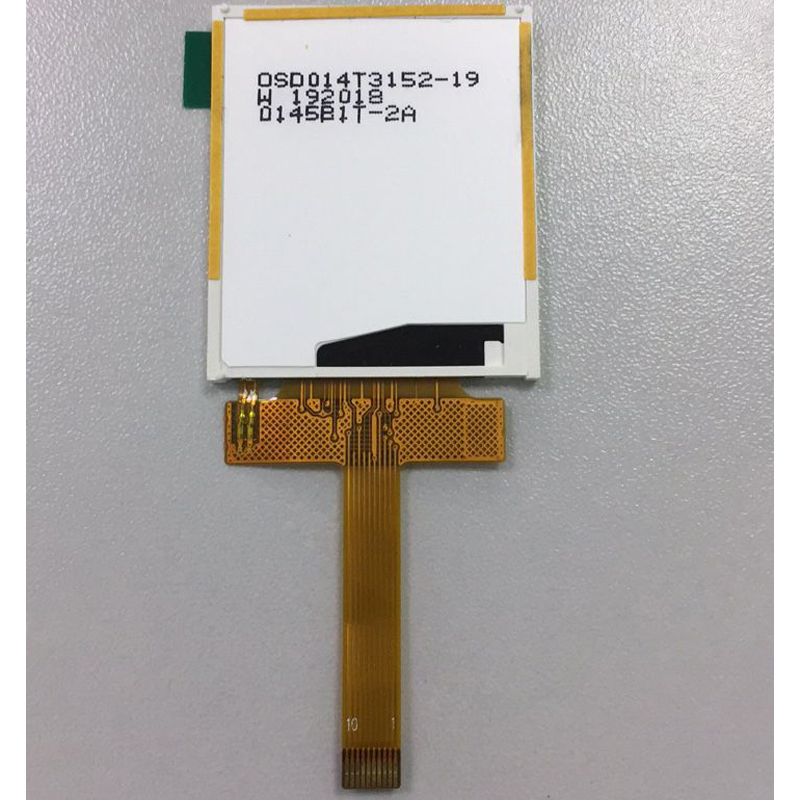

1.44 Inch SPI Interface 128x128 Small LCD Module
Kingtech 1.44inch 128x128 lcd display is a small size display. This display supports SPI interfaces.
- TFT display does not have existing resistive touch and TFT capacitive touchscreen, but the touch can be customized according to customer requirements. This 1.44inch display can be used for smartwatch and industrial device.
Features of 1.44 Inch SPI Interface 128x128 Small LCD Module
128x128 resolution
Square display
Can custom resistive and capacitive touch screen
SPI TFT LCD interfaces
Application is for smartwatch
Specification of 1.44 Inch SPI Interface 128x128 Small LCD Module
Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any demands for specifications will be welcomed.
|
Item |
Kingtech 1.44inch 128x128 lcd display |
|
Model No |
PV144000YP10B |
|
Resolution |
128×128 |
|
Outline Dimension |
32.6(W)×38.00(H)×2.6(T) |
|
Active Area(mm) |
25.50(W)×26.50(H) |
|
Interface |
3-wire SPI / 4-wire SPI |
|
Viewing Angle |
6 o'clock |
|
Driving IC |
ST7735S |
|
Display Mode |
Normally White, Transmissive |
|
Operating Temperature |
-20 to +70℃ |
|
Storage Temperature |
-30 to +80℃ |
|
Brightness |
240nits |
|
Touch screen |
Can custom resistive and capacitive touch screen |
Application of 1.44 inch display
The 1.44 inch lcd 128x128 square TFT LCD display can be used for medical device, handheld equipment, industrial control, smart home and smartwatch.If you need any kinds of lcd module, please contact us, as a professional lcd screen supplier, Kingtech is willing to offer you high quality products.
