2.0 Inch 480x360 HVGA 24PIN MIPI IPS 250nits TFT LCD Display Module

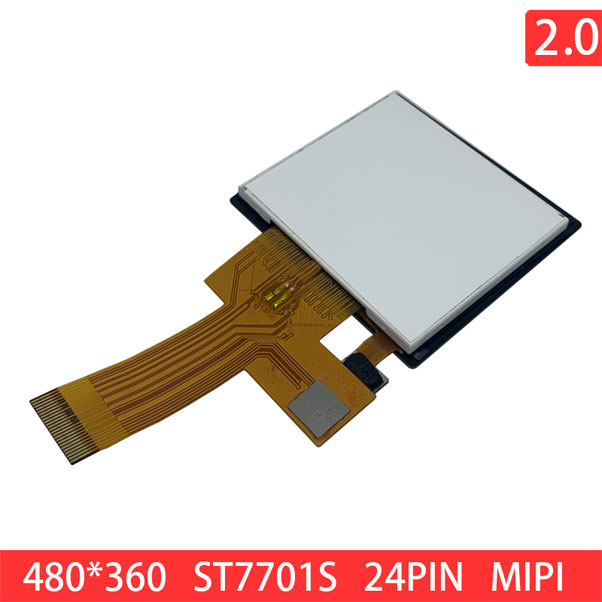

EX02002-A01 is a 2.0inch, IPS TFT LCD module with transmissive mode. Its resolution is 480×360dots (480 vertical by 360 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature 2.0 inch TFT module has built-in IC ST7701S supporting MIPI serial interface. The brightness is 250 cd/m2 with contrast ratio 1000: 1.Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
General Specifications of 2.0 Inch 480x360 HVGA 24PIN MIPI IPS 250nits
As a professional tft lcd panel manufacturer, we provide china lcd display panel, dsi tft display, dsi tft, dsi lcd panel, mipi dsi lcd panel, mipi lcd panel, mipi tft, hvga lcd, hvga tft, etc. For more information, please feel free to contact us!
Personne à contacter : tech exson, 0755 2101 8006
