2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits TFT LCD Display Module

Quantité : 500pcs/day   Prix : 30USD-300USD

2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits TFT LCD Display Module

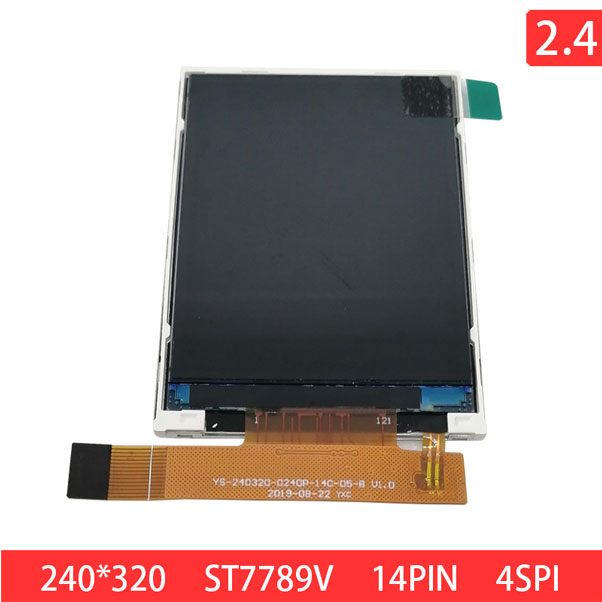

EX02401-A01 is a 2.4 inch, IPS active matrix TFT LCD module with transmissive mode. The module dimension is 42.72(W)×60.40(H)mm; active area 36.72(W)×48.96(H) mm (2.4"diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) and every pixel is made up of three vertical strips of Red, Green and Blue dots.

General Specifications of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits

No.

Item

Specification

1

LCD size

2.4 inch

2

Resolution

240(RGB)×320

3

Active area

36.72(W)×48.96(H)

4

Module size

42.72(W)×60.40(H)×2.21(T)(Exclude FPC)

5

Viewing Direction

All

6

Driver IC

ST7789V

7

Polarizer

Transmissive

8

Interface

4-SPI

9

Brightness

250cd/m2

10

Back Light

White

11

Pixel arrangement

RGB vertical stripe

Outline Dimension of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits

Features of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits

The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This china 2.4 tft display module has built-in IC ST7789V supporting SPI interface. The brightness is 250 cd/m2 with contrast ratio 800: 1. Operating temperature covers from -20~+70, storage temperature range is from -30~+80..This single-display module is suitable for use in industry, household appliances, toys and medical treatment,small consumer electronics and other fields.

As one of the most professional 2.4 tft manufacturers, we provide china display tft lcd, 2.4 inch lcd china, china 2.4 inch lcd, china lcd panel, etc. For 2.4 inch lcd price or more information, please feel free to contact us!

Localisation : 2F-M1 XiaWei Industrial Park, GuanLan,LongHua District, 518100 Shenzhen,
Personne à contacter : tech exson, 0755 2101 8006
