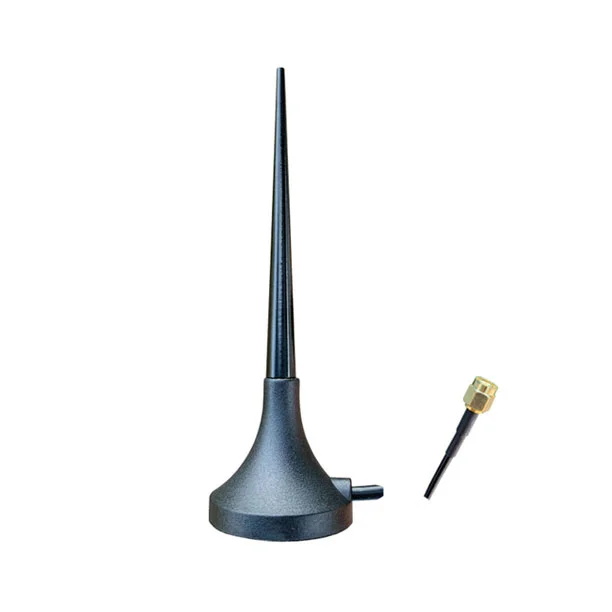

2.4GHz External Mobile Antenna With SMA Connector (AC-Q24I15)
2.4 ghz whip antenna delivers marked improvements in efficiency and gain across all common frequencies (2400-2483MHz) in use for WIFI and Wireless bands.
Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance.
The antenna should be mounted in a location that is not obstructed by other metallic surfaces which could interfere with signal transmission and reception.
Specification of 2.4 ghz wifi antenna
|
Electrical |
|
|
Frequency Range |
2400-2483MHz |
|
Band width |
83MHz |
|
Gain |
3dBi |
|
V.S.W.R |
≤2.0 |
|
Radiation |
Omni-Direction |
|
Polarization |
Vertical |
|
Maximum Input Power |
50W |
|
Impedance |
50Ώ |
|
Connector |
SMA Male(can be customization) |
|
Cable Type |
RG174 |
|
Cable Length |
3M |
|
Antenna Radome Material |
Aluminum |
|
Mounting way |
Magnetic Mount |
|
Mechanical |
|
|
Dimensions |
Φ29x100mm |
|
Weight |
48g |
|
Operating Temperature |
-40℃ to+70℃ |
|
RoHS Compliant |
YES |
Features of 2.4GHz External Mobile Antenna With SMA Connector
01
This antenna is an external magnetic mount multiband antenna designed for WiFi/WLAN and 2.4 GHz ISM band applications.
02
This WIFI series antennas provide a ground plane independent dipole antenna solution.
03
2.4 GHz antenna working for ISM applications such as Bluetooth and ZigBee.
For more information about mini rf antenna, please feel free to contact us!
