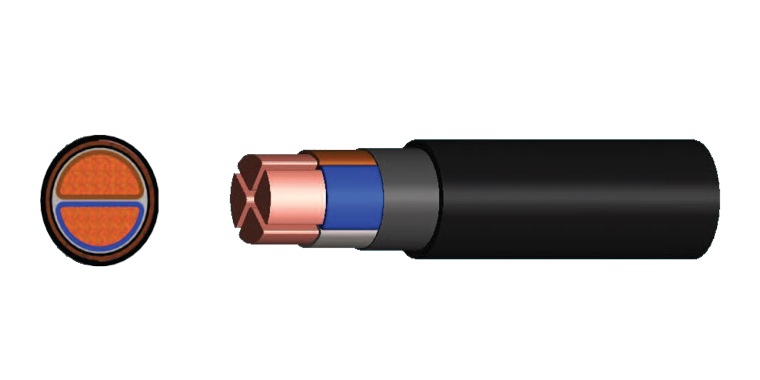

2 Cores Power Cable (PVC Insulated）
PVC insulated 2 cores power cables are normally used in power transmission and distribution system. The 2 core PVC cables are referred to IEC60502 CU/PVC/PVC 0.6/1KV. The circular conductor are applied for the size below 16mm² and the shaped conductor is applied for the size above and including 35mm².
2 Cores XLPE Power Cable (PVC Insulated) Parameter
|
Cross-sectional Area (㎡) |
No.&diameter of wire (N/mm) |
Average overall diameter (mm) |
Reference weight (kg/km) |
Conductor Resistance (Ω/km) 20℃ Max |
|
2x1.5 |
1/1.38 |
12 |
186 |
12.1 |
|
2x2.5 |
1/1.76 |
12.8 |
225 |
7.41 |
|
2x4.0 |
7/0.85 |
15.2 |
324 |
4.61 |
|
2x6.0 |
7/1.04 |
16.2 |
390 |
3.08 |
|
2x10 |
7/1.35 |
18.2 |
531 |
1.83 |
|
2x16 |
7/1.7 |
20.0 |
699 |
1.15 |
|
2x25 |
10/1.83 |
17.2 |
679 |
0.727 |
|
2x35 |
14/1.83 |
18.8 |
887 |
0.524 |
|
2x50 |
19/1.83 |
21.5 |
1197 |
0.387 |
|
2x70 |
27/1.83 |
23.8 |
1606 |
0.268 |
|
2x95 |
37/1.83 |
27.4 |
2157 |
0.193 |
|
2x120 |
30/2.32 |
29.3 |
2689 |
0.153 |
|
2x150 |
37/2.32 |
32.4 |
3291 |
0.124 |
|
2x185 |
37/2.52 |
35.7 |
4002 |
0.0991 |
|
2x240 |
48/2.52 |
40.3 |
5122 |
0.0754 |
|
2x300 |
61/2.52 |
44.5 |
6430 |
0.0601 |
|
2x400 |
61/2.95 |
50.1 |
8634 |
0.0470 |
Description of 2 Cores Power Cable (PVC Insulated)
Rated Temperature: 70oC
Rated Voltage: 600/1000V
Reference Standard: GB/T12706, IEC60502, BS6346
Model: VV
Shaped stranded copper conductors
Flame retardant insulated with PVC compound
PVC bedded
Flame retardant PVC sheathed overall
Application of 2 Cores Power Cable (PVC Insulated)
• For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions.
• For situation not suppose to bear the external mechanical force.
As a power cable manufacturer, we will do our best to meet all the needs of customers.
