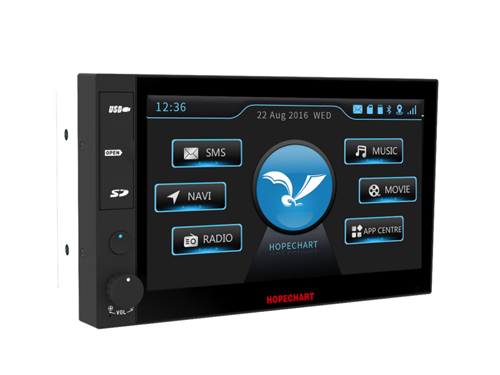

2 Din Android HQG-6106

No.

Function

Remarks

1

Display

7-inch LCD screen, resolution 800×480，used for displaying UI interface,reverse monitoring, video monitoring and movie playback. Sun shade can be installed.

2

Touchscreen

Capacitive touch screen, support multi touch.

3

Backlight brightness adjustment

Automatic adjustment or by hand according to time, headlights state.

4

Buttons on panel

HOME key (with rotary knob), press it to return to main interface, rotate to adjust volume.

5

Storage

Internal memory: 16G EMMC, storing program, navigation map and APPs.External memory: support SD card, USB flash disk and mobile HDD.

6

Positioning

Built-in GPS positioning module, used for time correction and navigation.

7

Navigation

Support professional navigation software for trucks. Navi mapis upgradable, support real-time traffic information.

8

Speaker

Connect with vehicle speaker for audio playback and navigation voice

9

Bluetooth

Play music through Bluetooth.Users can answer the call via Bluetooth. Support functions like Bluetoothdialing, directory enquiry.Bluetooth can be disabled.

10

Radio

FM/AM all band. Support auto search, manual search and memory playback.

11

Audio playback

Full formats. Support FF, FR, drag, play, pause, list preview and memory playback.

12

Video playback

Full formats & HD. Support FF, FR, drag, play, pause, list preview and memory playback.

13

Vehicle information

Displayvehicle configuration, terminal device configuration and vehicle parts catalog.

14

Multi-function

steering wheel

By integrating relativeagreement, it can realize Last Song, Next Song, Pause/Play, Volume+ and Volume-

15

Vehicle info display

Working together with our tachograph terminal, it can simultaneously display time and date, vehicle speed (km/h), fuel level (L), GSM signal strength, vehicle state,driver ID, self-checking state, messages, weather and failure reminds.

16

Program upgrade

Support local upgrading program by SD card and USB disk.

17

Delayed power-off

By detecting ACC signal, the device can be powered off postponed for 30s.

18

Boot logo

Can be customized

19

Screensaver

When vehicle is being driven or the screen has not been touched for a period of time (configurable), the device will enter screensaver. Tap the screen to return to the original interface.

20

Digital signal output

Support 3-way digital signal detection. When reverse, left turn or right turn,the screen will automatically display the relative camera. From ACC ON toreverse, the reverse camera needs 3 seconds to detect it.

21

CAN interface

Extended connection with different sensors.

22

CVBS input

3 channels: 1 for reverse video, the other 2 for blind spot monitoring.

23

USB

2-way HOST: 1 on the front panel, 1 on throwing wire.

24

Photo capture

The two cameras beside reverse camera can capture photos and upload tothe monitoring centre.
