3 Piece Flanged Ball Valve
Full bore
Flanged ends: DIN 2345, ISO 5752
GB12221
Quality investment casting body
and cap
Internal entry blow-out proof stem
Pressure rating: PN40
Material: CFSM, CF8
CF3M. WCB
Pressure test: API598
Lever handle with locking device
Penglai Huande Steel Valve Co.,Ltd is specialized in designing, developing, innovating new 3 piece floating ball valve. This is our three piece flange ball valves. Please allow us to tell u a new way when you use this kind of valves, which can help you improve the working efficiency and reduce the damage of products. First of all, leave the valve stem in a rotated position.
Second, do not use it for throttling. Third, the ball valve with transmission shall be installed upright. The principle of the three-piece flanged ball valve is to rely on the rotary valve to make the valve open or blocked. The ball valve is light and compact, can be made into a large diameter, reliable in sealing, simple in structure, and convenient for maintenance. The sealing surface and the spherical surface are often in a closed state and are not easy to be eroded by media. They are widely used in various industries. If you are interested in our products, please feel free to contact me anytime.
The details of our products are as follows:

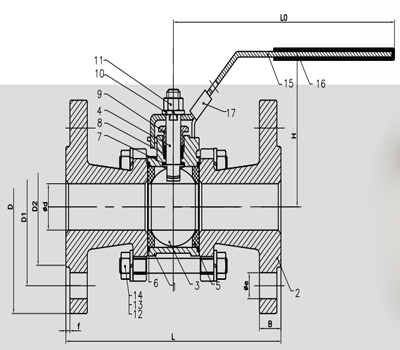

Size of ball valve 3 piece body:
size |
d |
The |
D |
D1 |
D2 |
B |
f |
z-Φe |
H |
THE |
1/2 |
15 |
130 |
95 |
65 |
46 |
14 |
2 |
4-Φ14 |
68 |
136 |
3/4 |
20 |
150 |
105 |
75 |
56 |
16 |
2 |
4-Φ14 |
72 |
136 |
1 |
25 |
160 |
115 |
85 |
65 |
16 |
2 |
4-Φ14 |
84 |
165 |
1-1/4 |
32 |
180 |
140 |
100 |
76 |
18 |
2 |
4-Φ18 |
93 |
165 |
1-1/2 |
38 |
200 |
150 |
110 |
84 |
18 |
2 |
4-Φ18 |
99 |
200 |
2 |
50 |
230 |
165 |
125 |
99 |
20 |
2 |
4-Φ18 |
109 |
200 |
2-1/2 |
65 |
290 |
185 |
145 |
118 |
twenty two |
2 |
8-Φ18 |
138 |
302 |
3 |
80 |
310 |
200 |
160 |
132 |
twenty four |
2 |
8-Φ18 |
150 |
302 |
4 |
100 |
350 |
235 |
190 |
156 |
twenty four |
2 |
8-Φ22 |
180 |
329 |
Specification of 3 Piece Flanged Ball Valve:
No. |
Drawing.No. |
Name |
Material |
QYT |
1 |
V3F-000l |
Body |
CF8M |
1 |
2 |
V3F-0002 |
Cap |
CF8M |
2 |
3 |
V3F-0003 |
Ball |
CF8M |
1 |
4 |
V3F-0004 |
Stem |
304 |
1 |
5 |
V3F-0005 |
Seat |
PTFE |
2 |
6 |
V3F-0006 |
Gasket |
PTFE |
2 |
7 |
V3F-0007 |
Thrust.washer |
PTFE |
1 |
8 |
V3F-0008 |
Stem.packing |
PTFE |
2 |
9 |
V3F-0009 |
Gland |
304 |
1 |
10 |
V3F-0010 |
Spring.washer |
304 |
1 |
11 |
V3F-0011 |
Nut |
304 |
1 |
12 |
V3F-0012 |
Stud |
304 |
4 |
13 |
V3F-0013 |
Spring.washer |
304 |
8 |
14 |
V3F-0014 |
Nut |
304 |
8 |
15 |
V3F-0015 |
Handle |
304 |
1 |
16 |
V3F-0016 |
Handle.sleeve |
Rubber |
1 |
17 |
V3F-0017 |
Lock.washer |
304 |
1 |
