3Ton Commercial Flake ICE Machine for Supermarket
3Ton Commercial Flake ICE Machine for Supermarket
According to Production:
1. Large Industrial flake ice machine: 10 tons to 50 tons
2, medium-sized flake ice machine: 5 tons to 10 tons
3, small-sized commercial ice machine: 0.5 tons to 3 tons
According to the water source:
1, sea ice sheet ice machine
2, fresh water slice ice machine
According to the transporation:
1, container type ice machine
2. Non-container type ice sheets< /span>
A. The evaporator inner wall adopts high-quality chrome-plated carbon steel (or food grade SUS304 stainless steel), which is highly efficient, energy-saving, anti-corrosion, and not easy to damage. Maintenance is more convenient;
B. Evaporator uses automatic argon-arc fluoride welding technology, which fully enhance the quality and prevent refrigerant leakage.
C. Use the spiral hob, which is low resistance, low abrasion, without noise, and uniform ice scraping.
D.The whole units composed of compressor, condenser, gas-liquid separator, oil separator, liquid storage tank, and expansion valve. This highly efficient and energy-saving refrigeration system own a lot of patents in the industry.
E.Microcomputer intelligent control: The ice making system adopts microcomputer automatic control system. Once there is a water shortage, reversal, ice full, ice scraping, high pressure, low pressure or other fault, it will directly feedback to the PLC computer program, then will automatically process by the microcomputer and finally display on the touch screen. This controller system is totally user-friendly, simply operation and easy maintenance.
|
PRODUCT NAME< /span>
|

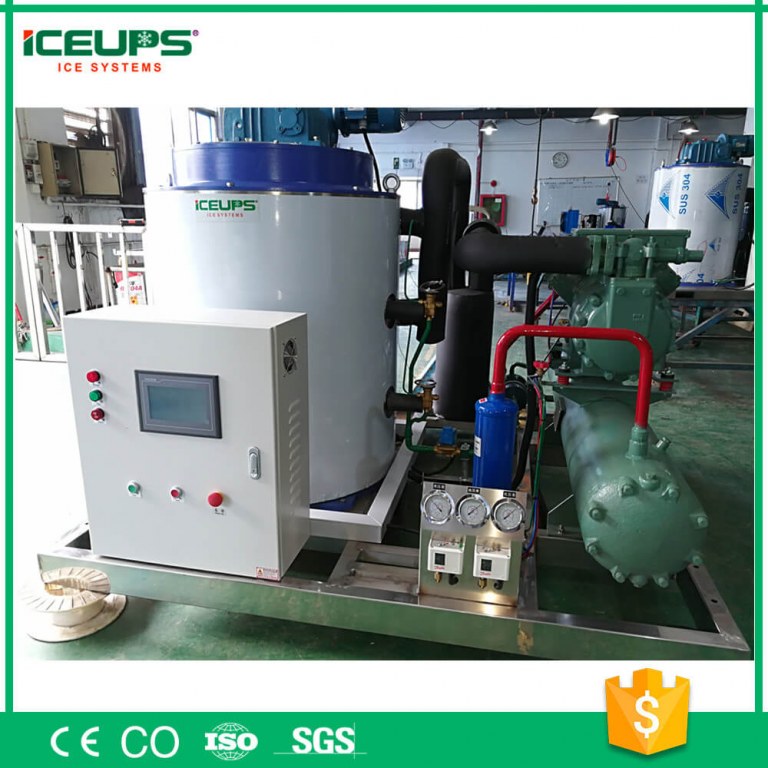

KMS-3T 3000KGS Flake ICE Machine
|
|
DAILY CAPACITY(24H)< /span>
|
3000KGS/Day< /span>
|
|
REF.CAPACITY（KW）
|
18KW/Hour
|
|
EVAPORATING TEMP.
|
-22℃< /span>
|
|
CONDENSING TEMP.
|
40℃
|
|
COMPRESSOR TYPE
|
Piston
|
|
COMPRESSOR BRAND
|
Danfoss/Bitzer
|
|
TOTAL POWER（KW）
|
14KW/Hour
|
|
COMPRESSOR IN-POWER（KW）
|
11KW
|
|
POWER SUPPLY< /span>
|
3P-380V-50Hz(or Customized)
|
|
WATER PRESSURE
|
0.1Mpa~0.5Mpa
|
|
REFRIGERANT< /span>
|
R404a
|
|
ICE TEMP.
|
-6℃
|
|
FLAKE ICE THICKNESS
|
1.5mm~2.2mm< /span>
|
|
AMBIENT TEMP.
|
25℃
|
|
WATER TEMP.
|
18℃
|
|
SUPPLY WATER WAY
|
Freshwater
|
|
COOLING WAY
|
Air Cooller(Water Cooler Opt.)
|
|
RUNNING NOISE（dB）
|
≤46dB
|
|
ICE DENSITY
|
400~400kg/m3
|
|
ICE MACHINE DIMENSION（LxWxH）
|
1750*1190*1200mm
|
|
ICE STORAGE DIMENSION（LxWxH）
|
1800*1600*1700mm
|
|
ICE STORAGE CAPACITY
|
1800KG
|
|
GROSS WEIGHT< /span>
|
1500KG
|
The Commerical Flake ICE Machines Application:
1. Supermarket preservation
2. Seafood Restaurant
3. Fresh fruits and vegetables preservation
4. Fish and other Seafood products preservation
5. Chicken, duck, fresh meat and other meat products preservation
6. Slaughter plants
7. Aquatic products processing factory
8. Food processing factory
9. Poultry cooling
10. Chemical dyes industry
11. Brewing industry
13. Mine cooling
About ICEUPS
Shenzhen ICEUPS Refrigeration Equipment co.,Ltd.is a professional manufacturer of ice making machines who service global market. Our company is located in Shenzhen, China.
The company works for this refrigeration equipments for over 15 years, and built the own brand ICEUPS in 2009, and start to service to global users. Now the exporting of ICEUPS ice making equipment has more than and 100 countries and regions.
Our products covered flake ice machine, tube ice machine, ice cube machine, block ice machine, automatic freezer, ice evaporator, chillers and hundreds of models, applied to many areas of business, food, transportation, shipping, construction, coal, chemical industry, paper-making, nuclear power and so on.
Our Honor
Our experience and trained R&D team are dedicated in innovation and creation, have owned a lots of patent right and passed various certificates.
We aim to to be a global Refrigeration Equipements manufacturer with high reputation and reliable quality.
Packing Details : ICE Machine and ICE Storage with separated package by using wood box
Delivery Details : Usually within 10 days for small machine which in stock, 20~30 days for big machine.
Customer Photo
Q: Are you trading company or manufacturer ?
A: We are a tr
