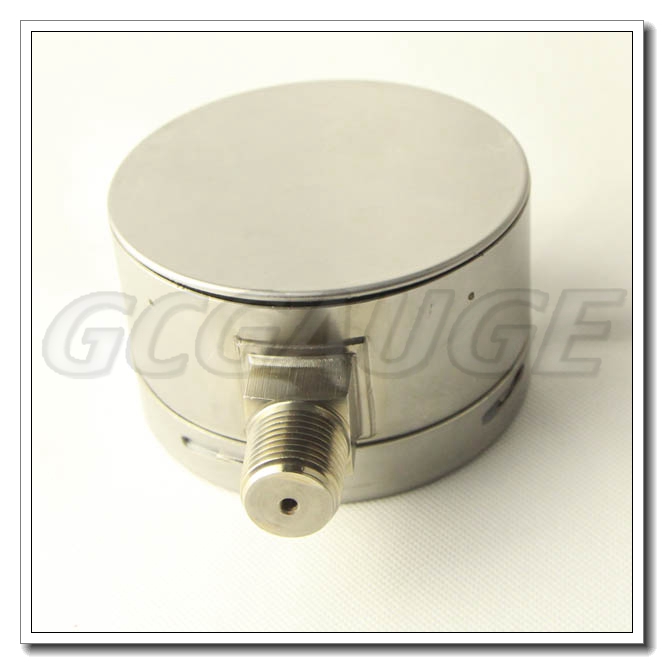

4 Inch All Stainless Steel Bottom Connection Safety Pattern Pressure Guages with Blow...
Safety pattern pressure gauge which is designed for harsh and corrosive environmental conditions. There is Burst disk pressure in the gauge, blow out hole in the back to relief the presure inside caused by failure of elastic element. The All Stainless Steel Pressure Gauge has an internal compensating diaphragm and a filling plug for field filling. The liquid fiaing type offers an excellent vibration-proof and damping ability that reducing the internal damage and corrosion. They are applied to food, pharmaceutics, chemical industry, petrol flat roof on the sea, artesion well, shipping and so on.
Specification of 4 Inch All Stainless Steel Bottom Connection Safety Pattern Pressure Guages with Blow-out Back
|
Dial: |
2.5", 4" |
|
Scale ranges: |
0-1500Bar (2.5"), 0-4000Bar (4",6") |
|
Accuracy class: |
1.0% |
|
Process connection: |
1/2"NPT, BSP or customized |
|
Burdon tube: |
316LSS spiral tube |
|
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
|
Movement: |
316SS or 304SS |
|
Pointer: |
Aluminum, micrometer adjustable for option |
|
Welding: |
TIG Welding, Laser Welding |
|
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
|
Window(lens): |
Tempered glass |
|
Fill: |
Glycerin or Silicone |
|
Type: |
Solid Front, Blow-out Back |
As a oil pressure gauge manufacturer, we provide sanitary gauge, silicone oil for pressure gauges, blow out back pressure gauge, bourdon type gauge, etc. Contact us to know the price of gauge now.
