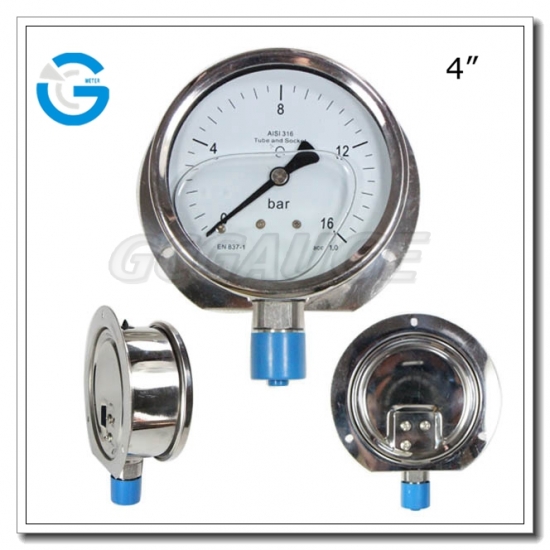

4 Inch Stainless Steel Pressure Gauge Oxygen Use With Oil Filled
Fluorocarbon oil filled air pressure gauge which is used in the oxygen system, with no oil, all stainless steel material, different diameter is available.
Specifications of 4 Inch Stainless Steel Pressure Gauge Oxygen Use With Oil Filled
|
Dial: |
1.5", 2", 2.5", 4",6",8"10" |
|
Scale ranges: |
-1 to 1000bar |
|
Accuracy class: |
1.6%(≤63): 1.0%(≥100,150,200) |
|
Process connection: |
1/8”,1/4",1/2"NPT OR BSP |
|
Burdon tube: |
316LSS,drawn seamless |
|
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
|
Movement: |
316SS or 304SS |
|
Pointer: |
Aluminum, micrometer adjustable for option |
|
Welding: |
TIG Welding, Laser Welding |
|
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
|
Window(lens): |
Safety glass, tempered glass or pc |
|
Fill: |
Glycerin or Silicone |
|
IP class: |
IP 65 |
As an excellent pressure gauge manufacturer, we offer a wide range of safety pattern pressure gauge for you to choose from.
