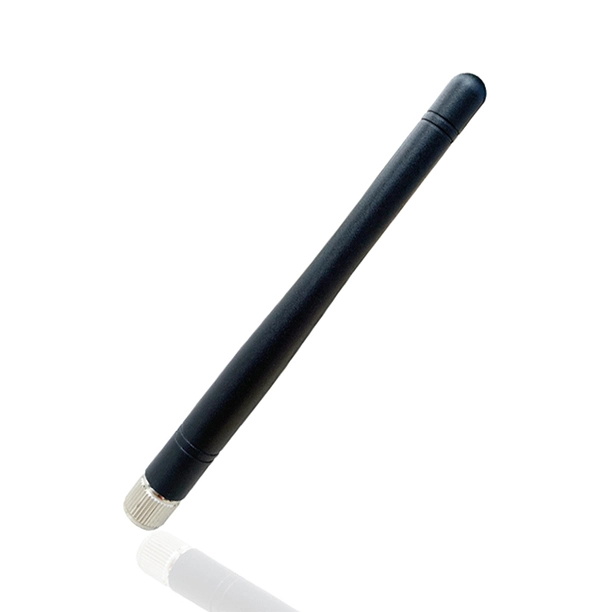

433MHz UHF Terminal Antenna With SMA Male Connector (AC-Q433-38CJ）
Quantité : Daily outp
Antenna With SMA Male Connector (AC-Q433-38CJ）
The 433mhz pcb antenna is vertically polarized with an omnidirectional radiation pattern.
These antennas are mounted directly onto the 433MHz product and are intended for demonstration use or short range communications only.
Linear polarized antenna can be made very small and light weight, especially useful for weight-critical application
The antenna has a SMA or female connector.
It also has good shockproof and anti-aging performance
Specification of 433MHz UHF Terminal Antenna With SMA Male Connector
|
Electrical |
|
|
Frequency Range |
433MHz |
|
Gain |
3dBi |
|
V.S.W.R |
≤2.0 |
|
Radiation |
Omni-Direction |
|
Polarization |
Vertical |
|
Maximum Input Power |
5W |
|
Impedance |
50Ώ |
|
Connector |
SMA Male |
|
Antenna Radome Material |
PE |
|
Mechanical |
|
|
Dimensions |
Φ10x114mm |
|
Weight |
10g |
|
Operating Temperature |
-40℃ to+70℃ |
|
RoHS Compliant |
YES |
Features of 433MHZ High Gain Antenna With SMA Male Connector
01
50 Ohms impedance antenna can operate at temperatures ranging from -40 °C to 60 °C.
02
This single-band rubber duck antenna is offered with expert technical support, PDF datasheets, and CAD drawings with dimensions and specifications.
03
Linear polarized antenna can be made very small and light weight,especially useful for weight-critical application
If you want to know more details of antenna selection, please visit our website.
