Chine (Rép. pop) Véhicule
Véhicule

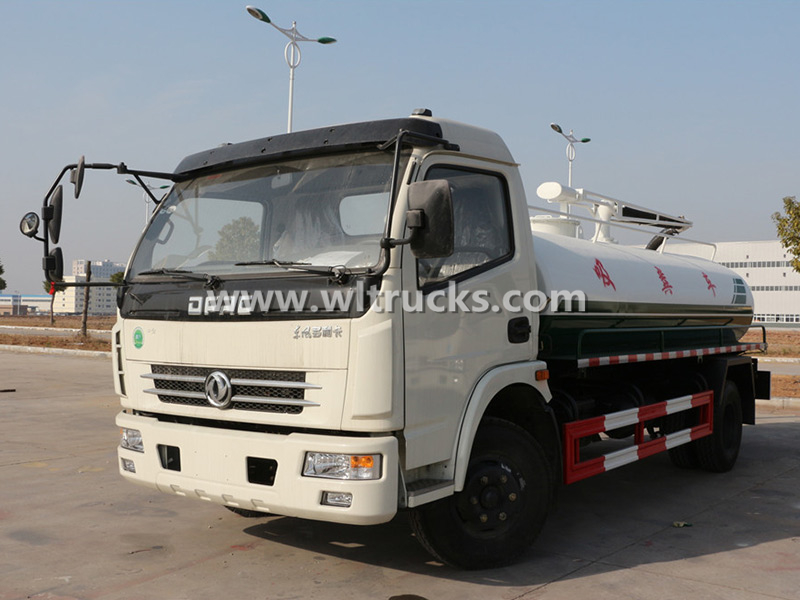

4X2 Dongfeng 5CBM Fecal Suction Trucks

Quantité : 17000   Prix : 17 000,00 €

Fecal suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge and etc. Facel suction truck is equipped with special vacuum suction pump, which is applied to suck faces, sewage, sludge and other liquid mixed with small suspended granules. The truck is with elliptical tank, tank material is carbon steel and stainless steel, the interior of the tank has four anti wave plates, this can avoid the instability caused by the sloshing of the liquid in the tube during the transport process. The upper part of the tank is designed with a safety barrier, so that the worker are protected during the walking. The rear head of tank is sealed. Pressure generated by the vacuum pump is used for sewage disposal. Fecal suction pipe can rotate with 360 degrees. Full tank pumping time: ≤ 5min, suction depth: ≥ 7m, two discharge ways: pressurized discharge and self-flowing discharge. Fecal suction truck is made up with chassis, vacuum tank, vacuum pump, oil-gas separator, water-gas separator, four way valve, locking device, pressure meter, fecal suction pipe, hanger rod, liquid level meter, hydraulic cylinders,power take-off,hand washing device and etc. The truck is used for cleaning septic tanks, sewage ditches and sewers etc.

The advantage of 4X2 DongFeng 5CBM Fecal Suction Truck

1.Strong suction.
2. Easy Operation and Maintenance
3. Fecal suction pipe can rotate with 360 degrees
4. Fecal suction truck with 4 anti-wave plate.

The specification of 4X2 DongFeng 5CBM Fecal Suction Truck

CHASSIS

Cabin

3 passengers

Overall Dimension

7210x2240x2600mm

Gross Vehicle Weight

8275kg

Curb Weight

5200kg

Loading Weight

2880Kg

Wheel Base

3800mm

Approach/Departure Angle

24/10 degree

Engine

CY4102;four stroke, 4 cylinder in line; Euro III

Engine horsepower

124HP

Displacement

3,856 L(Diesel)

Max Driving Speed

99km/h

Fuel Tank

120L

Tire

7.50-16 (6 pieces + 1 spare)

TANK BODY

Tank

Capacity

5CBM

Dimension

2100*1400mm(Length*Diameter)

Material

Q235 high tension steel

Thickness

4mm

PUMP

Vacuum Suction Pump

Model

SK-6

Vertical Suction Range

9~10M

Flow Rate

1.5m³/min

Rubber tube

7M

Adequate Vacuum, Strong suction, Stable Working, Easy Operation and Maintenance

More truck photos:https://www.wltrucks.com/photos/

Localisation : Chengli Automobile Industrial Park, South Suburb, Suizhou City, Hubei Province, China, 441300 suizhou,
Personne à contacter : Linda zhang, +13 8 72 88 63 72
