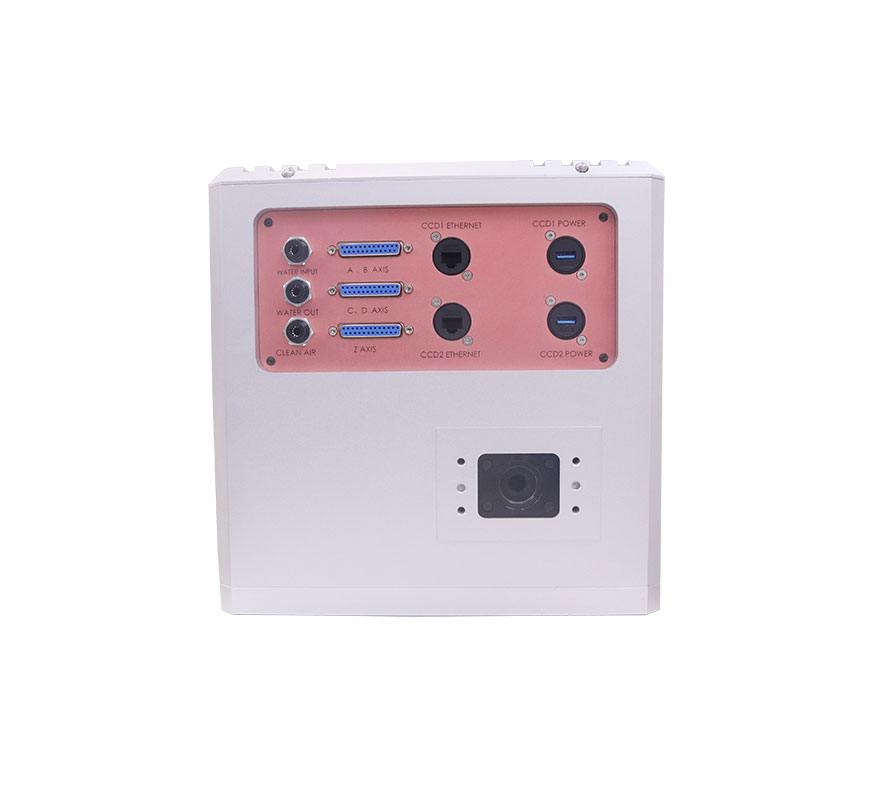

5-axis Laser Micromachining System
Prix : 500—15000(USD)
The ordinary laser drilling system can only process the taper hole, and can not achieve the standard straight hole and inverted cone hole processing. Besides the standard straight hole and the taper hole processing, the 5-axis laser micro machining system can also process the inverted cone hole, which greatly expands the laser drilling applications. With different wavelengths and super fast lasers, the thermal effect of drilling is small and the surface treatment is smooth. Only by making the processing materials unlimited, has been applied to drilling and processing in all walks of life.
Key Features Of 5-axis Laser Micromachining System
In order to ensure accurate synchronization, it is necessary to process the position data of each axis under the same processor and control clock. This design uses high speed digital chip FPGA to achieve
The positioning accuracy of the galvanometer will directly affect the machining accuracy of the equipment, and the factors affecting the positioning accuracy of the galvanometer mainly include the accuracy of the galvanometer feedback system, controller and the accuracy of correction.
The self-developed 24-bit high-precision encoder, combined with the high bandwidth driver based on PID and feedforward controller, improves the control accuracy of the system.
Adopt high-precision CNC machine tool to fix and clamp important structural parts at one time to ensure high-precision installation of galvanometer motion module.
Specifications Of 5-axis Laser Micromachining System
Working field size (Diameter, Depending On Nozzle Opening) |
mm |
φ0.025mm to φ1mm |
Maximum Focus Range In Z Direction |
mm |
±1mm |
Entrance Beam Diameter (1/e2) |
mm |
10mm |
Focus Diameter In Image Field (1/e²) for M² = 1 |
um |
25um |
Maximum Angle Of Incidence |
|
18° |
Precession Frequency |
HZ |
200-600HZ(12000-36000rpm) |
Objective Focal Length |
mm |
50mm |
Repeatability |
um |
≤0.5um= |
Theoretical Resolution Of Incidence Angle |
urad |
2urad |
Dimension(L*W*H) |
mm |
601×280×274 |
Weight |
Kg |
23.5 |
For more information about cost of galvanometer and laser micromachining ppt, please feel free to contact us!
