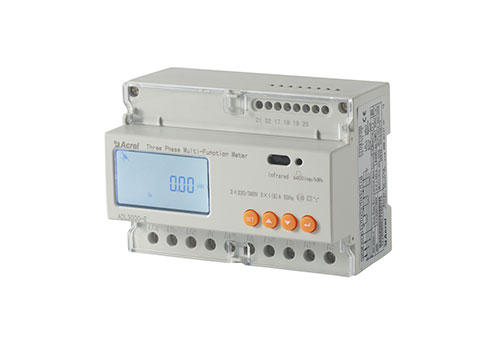

ACREL ADL SERIES DIN RAIL ENERGY METER

Acrel ADL series products adopt DIN35mm guide rail installation structure, compact size, can measure electric energy and other electrical parameters, clock, rate time and other parameters can be set, high precision, good reliability, performance indicators in line with CE, UL certification of the technical requirements of the energy meter, and has the power pulse output function; RS485 communication interface can be used to realize data exchange with the host computer.

Working principle Of 3 phase din rail energy meter

ADL Series Din Rail Energy meters use electronic circuits/chips to measure electrical energy; With partial pressure resistance or voltage signal into voltage transformer can be used for electronic measurement of small signal and current signal in the shunt or current transformer can be used for electronic measurement of small signal, using special power measurement chip will transform a good voltage and current signals are analog or digital multiplication, and electricity were accumulated, and then output frequency is proportional to the power of the pulse signal, Digital display after microcomputer processing.

Acrel provides kwh meter 3 phase ct, single phase digital power meter, 1 phase kwh meter, 3 phase energy meter with rs485, 3 phase kwh meter din rail, 3 phase power meter modbus, din rail 3 phase energy meter, ac current transducer, etc. For more information, please feel free to contact us!
