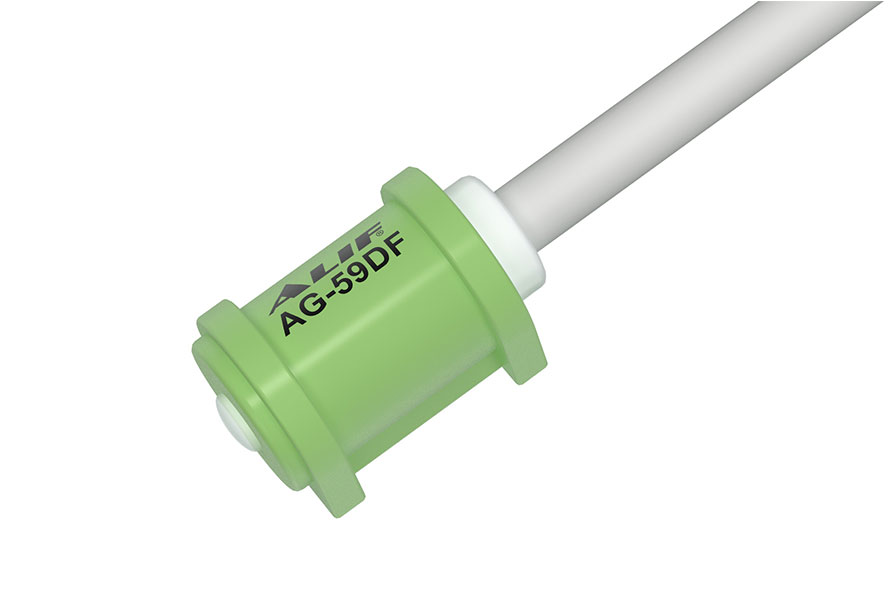

AG-59 Magnetic Cylinder Sensor
AG-59 series ac magnetic field sensor
The AG-59 series is optimized in the housing length of the AG-49 series, and inherits the characteristics of the AG-49 series' high versatility, convenient installation and firmness. It is the preferred magnetic switch for short-stroke standard cylinders.
Specification of AG-59 Magnetic Cylinder Sensor
|
Model |
AG-59 DF |
AG-59 N |
AG-59 P |
|
Switching Logic |
Normally Open |
Solid State Output, Normally Open |
|
|
Output Type |
2 Wire Solid State |
NPN Current Sinking |
PNP Current Sinking |
|
Voltage Range |
10～30V DC |
5～30V DC |
|
|
Sensor Current |
1～50 mA |
0～100 mA |
|
|
Switch Rating |
1.5 W Max. |
3W Max. |
|
|
Consumption |
/ |
3 mA Max.@24V |
|
|
Voltage Drop |
2.65V Max.@50mA DC |
0.8V Max.@200mA DC |
|
|
Leakage Current |
90 μA Max.@28V |
0.01 mA Max. |
|
|
Indicator |
Red LED |
Red LED |
Green LED |
|
Cable |
Φ3.3, 2C, Grey Oil-Resistant PVC |
Φ3.3, 3C, Grey Oil-Resistant PVC |
|
|
Sensitivity |
40～800 Gauss |
40～800 Gauss |
|
|
Sensor Frequency |
900Hz |
900Hz |
|
|
Temperature |
-10～70℃ |
-10～70℃ |
|
|
Shock |
50G |
50G |
|
|
Vibration |
9G |
9G |
|
|
Ingress Protection |
IP68 (GB/T4208-2017) |
IP68 (GB/T4208-2017) |
|
|
Protection Circuit |
Surge Suppression |
Power Reverse Polarity; Surge Suppression |
|
|
CE Certificate NO. |
E8A 17 04 53334 007 |
E8A 17 04 53334 008 |
|
|
CNEx Certificate NO. |
CNEx21.2238X |
CNEx21.2239X |
|
|
RoHS2.0 NO. |
RoHS 2011/65/EU & (EU) 2015/863 |
||
|
Reach NO. |
(EC) N 1907/2006 (REACH) |
||
ALIF Sensor is mounted on the cylinder block and will indicate "on" or "off" depending on the proximity to the magnet. Depending on the application, a variety of different magnetic proximity sensor technologies can be used to maximize performance, space, and reliability. According to the ALIF sensor type, there are different installation methods.
