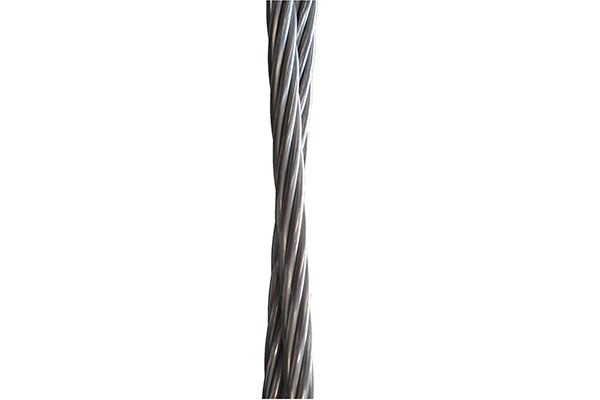

All Aluminum Conductor Steel Reinforced, Twisted Pair Conductor (ACSR/TP)

Steel-core aluminum twisted pair is mainly made of aluminium clad steel and used in long-distance medium-high voltage and ultra-high voltage transmission systems, especially in areas where the lines need to be wind-proof and earthquase-proof. Mainly according to ASTM standard manufacturing, if the customer has other requirements, can also be customized production according to customer requirements. It is made of two steel core aluminum twisted wires of the same size in the left direction.

All Aluminum Conductor Steel Reinforced, Twisted Pair Conductor(acsr/tp) Features

01.

STANDARD

ASTM B911

02.

Construction

Two ACSR conductors of the same size twisted

03.

Application

This kind of bare conductor cable is used in overhead power transmission and distribution lines.

Specification of All Aluminum Conductor Steel Reinforced, Twisted Pair Conductor(acsr/tp)

CODE NAME

SIZE

COMPONENT CONDUCTOR(NO./DIA.OF STRANDING WIRES)

AWG or MCM

AWG or MCM

Aluminum

Steel

No./mm

No./mm

Swan/TP

1

4

6/2.12

1/2.12

Swanate/TP

1

4

7/1.96

1/2.61

Sparrow/TP

2/0

2

6/2.67

1/2.67

Sparate/TP

2/0

2

7/2.47

1/3.30

Robin/TP

3/0

1

6/3.00

1/3.00

Raven/TP

4/0

1/0

6/3.37

1/3.37

Quail/TP

266.2

2/0

6/3.78

1/3.78

Pigeon/TP

335.6

3/0

6/4.25

1/4.25

Penguin/TP

423.2

4/0

6/4.77

1/4.77

For more information about types of electrical cables, please feel free to contact us!

There are many electrical cable suppliers china, but we are one of the best choices for you.
