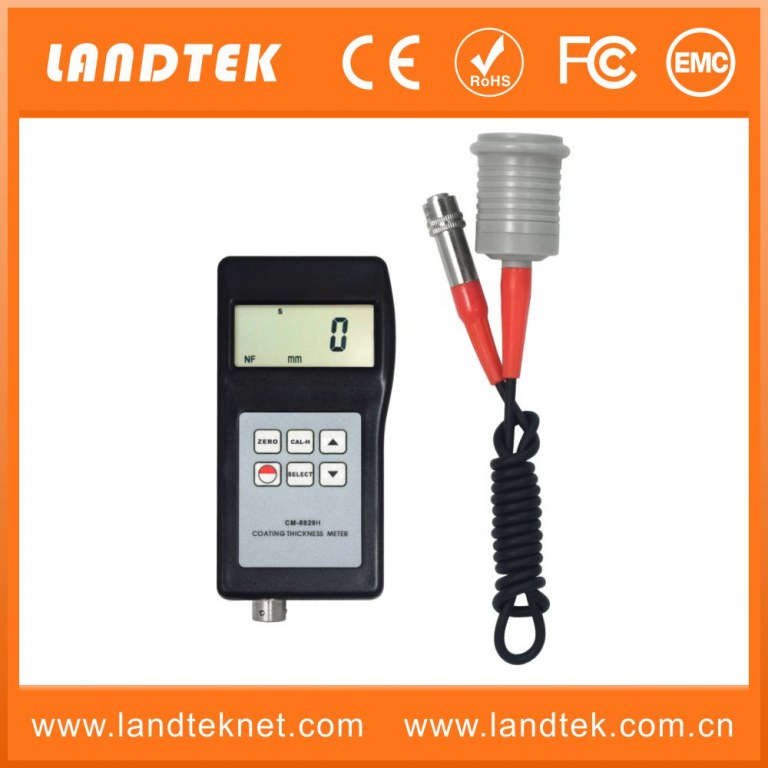

Anticorrosion Coating Thickness Gauge CM-8829H
Quantité : 2000 Prix : $1
Anticorrosion Coating Thickness Gauge
Size: CM-8829H
Applications:
Anticorrosion Coating Thickness Gauge CM-8829H is equipped with the large range of F probe.
Measuring method: F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium ti le, some alloy tile, paper etc.
Base: iron, nickle etc.(magnetic materials)
Features:
* The F probes measure the thickness of non-magnetic materials on magnetic materials.
* Two measurement mode: Single and Continuous(Notice：Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Details:
| Operating Principle | F Magnetic Induction |
| Measuring Range | 0~12 mm |
| Resolution | 0.01 mm / 0.1 mm |
| Min. Raius Workpiece | F Type: convex 20 mm / concave 50 mm |
| Min. Measuring Area | 16 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 0.2 mm |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 126 x 65 x 27 mm |
| Weight | 210 g (Not Including Batteries) |
For more details,please do not hesitate to contact us.Thank you!
