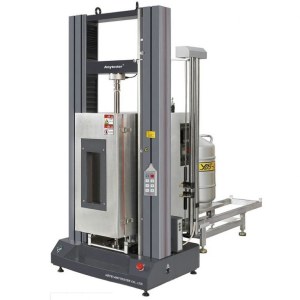

AT104 Universal Testing Machine with Chamber
AT104 Universal Testing Machine with Chamber
Product Description
AT104 Universal Testing Machine with Chamber addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems are suited for tension and/or compression applications with load range requirements from 20kN to 50kN. They are typically used for quality control and production testing.
Typical specimens: Small components, reinforced plastics, metals, wire, composites, elastomers, wood products, textiles, biomaterials, paper products, adhesives, foam, consumer products
Environmental simulation: Environmental chamber
New Features:
1) Robust guidance columns increase lateral stiffness and ensure linear crosshead travel. This results in accurate crosshead alignment thus reducing variability in measurement data and producing better overall accuracy
2) Non-clutched drives, rated for full speed at maximum force
3) Compact design saves lab space
4) Wider test width
High Quality at affordable price
1) Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance. The result is accurate and repeatable measurements that truly represent the specimen characteristics rather than load frame deficiencies
2) Fully-protected lead screw covers provide longer life and greater operator protection
3) Easy-to-clean aluminum column covers with chamfered corners to facilitate access to the test area. T-slots are built in for simple, convenient attachment and positioning of testing accessories
4) High-speed, low vibration, world-class, maintenance-free, Japanese made AC servo motor and servo controller
5) Photoelectrical encoder built in servo motor system is for position measurement of crosshead
6) Built-in bidirectional load cell is assembled in the middle crosshead to prevent any collisions and simple to perform compression or tension tests
7) Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards
8) Remote control keypad facilitates test operation
9) DTC-350 controller provides high speed data acquisition with 8-CH A/D converting
10) Full one-year warranty on parts and labor
11) Free software upgrading
Full complement of test accessories
Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.
1) Tension grip
2) Peel/tear fixture
3) Compression fixture
4) Flexure fixture
5) Film COF test fixture
6) S type load cells: 10N~5kN
7) Long travel extensometer
8) Clip-on extensometer
9) Environmental chamber
10) T-slot table
11) Others
Anytester offers various kinds of environmental chamber to address the needs of non-ambient t tensile, compression and bending tests.
GDW200 is specially designed for AT103/AT104 series, while GDW300 is for AT105 series. Both models provide temperature ranging -70 ~ +350°C.
Model |
GDW200 |
GDW300 |
Compatible with model |
AT103/AT104 |
AT105 |
Temperature range |
-70~+350°C |
|
Wind circulation method |
centrifugal blower |
|
Temperature fluctuation |
≤±1°C |
|
Temperature accuracy |
≤±2°C |
|
Temperature uniformity |
≤2°C |
|
Temperature control meter accuracy |
Class 0.2 |
|
Heating time |
≥5°C/min |
|
Cooling time |
≥2°C/min |
|
Cooling method |
Liquid nitrogen |
|
Heat insulating material |
Aluminum silicate wool |
|
Inside dimension |
D240×W200×H600 mm |
D320×W300×H600 mm |
Outside dimension |
D810×W360×H760 mm |
D890×W460×H760 mm |
Heating power |
1.5kW |
2kW |
Liquid nitrogen heating power |
30W |
|
Power supply |
380V±10%, 50/60Hz |
