Bashan supplier Screw Locking threaded inserts M2- M60 coating color helicoils inserts
Quantité : 100PCS Prix : USD 0.03/PC

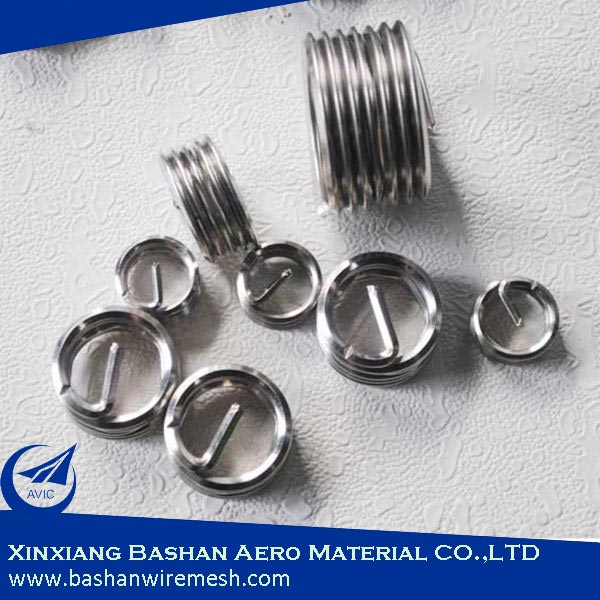

Screw Locking threaded inserts M2- M60 stainless steel wire sets helicoils inserts threaded sleeve
Product Name | Screw Locking threaded inserts M2- M60 stainless steel wire sets helicoils inserts threaded sleeve |
Material | 302/303/307/308,etc |
Color | original/red/black/ |
Standard | MERTRIC/UNC/UNF/ |
type | Screw Locking |
Screw Locking threaded inserts M2- M60 stainless steel wire sets helicoils inserts threaded sleeve:
Other type screw threaded inserts, as follows:
Metric Series Specification and Assembly Data:
Specification | Nominal Length | W | Dz | d0 | |||
d×p | L×d | ||||||
d | p | ×d | L1 | min | max | ||
2 | 0.4 | 1d | 2 | 3.4 | 2.6 | 2.8 | 2.1 |
1.5d | 3 | 5.5 | |||||
2d | 4 | 7.6 | |||||
2.5d | 5 | 9.7 | |||||
2.5 | 0.45 | 1d | 2.5 | 3.6 | 3.3 | 3.5 | 2.6 |
1.5d | 3.8 | 5.9 | |||||
2d | 5 | 8.2 | |||||
2.5d | 6.3 | 10.5 | |||||
3d | 7.5 | 12.8 | |||||
3 | 0.5 | 1d | 3 | 4.2 | 3.8 | 4 | 3.1 |
1.5d | 4.5 | 6.8 | |||||
2d | 6 | 9.4 | |||||
2.5d | 7.5 | 12 | |||||
3d | 9 | ||||||
4 | 0.7 | 1d | 4 | 4.1 | 5.05 | 5.25 | 4.2 |
1.5d | 6 | 6.6 | |||||
2d | 8 | 9.1 | |||||
2.5d | 10 | 11.6 | |||||
3d | 12 | 14.1 | |||||
5 | 0.8 | 1d | 5 | 4.6 | 6.35 | 6.6 | 5.2 |
1.5d | 7.5 | 7.3 | |||||
2d | 10 | 10 | |||||
2.5d | 12.5 | 12.8 | |||||
3d | 15 | 15.5 | |||||
6 | 1 | 1d | 6 | 4.4 | 7.6 | 7.85 | 6.3 |
1.5d | 9 | 7.1 | |||||
2d | 12 | 9.8 | |||||
2.5d | 15 | 12.4 | |||||
3d | 18 | 15.1 | |||||
7 | 1 | 1d | 7 | 5.4 | 8.65 | 8.9 | 7.3 |
1.5d | 10.5 | 8.5 | |||||
2d | 14 | 11.6 | |||||
2.5d | 17.5 | 14.8 | |||||
8 | 1.25 | 1d | 8 | 4.9 | 9.85 | 10.1 | 8.3 |
1.5d | 12 | 7.9 | |||||
2d | 16 | 10.8 | |||||
2.5d | 20 | 13.7 | |||||
3d | 24 | 16.6 | |||||
8 | 1 | 1d | 8 | 6.2 | 9.85 | 10.1 | 8.3 |
1.5d | 12 | 9.8 | |||||
2d | 16 | 13.3 | |||||
2.5d | 20 | 16.9 | |||||
10 | 1.5 | 1d | 10 | 5.2 | 12.1 | 12.5 | 10.4 |
1.5d | 15 | 8.3 | |||||
2d | 20 | 11.3 | |||||
2.5d | 25 | 14.4 | |||||
10 | 1.25 | 1d | 10 | 6.3 | 12.1 | 12.5 | 10.3 |
1.5d | 15 | 9.9 | |||||
2d | 20 | 13.5 | |||||
10 | 1 | 1d | 10 | 7.7 | 12.1 | 12.5 | 10.3 |
1.5d | 15 | 12.1 | |||||
2d | 20 | 16.5 | |||||
2.5d | 25 | 20.8 | |||||
11 | 1.5 | 1d | 11 | 5.8 | 13.1 | 13.5 | 11.4 |
1.5d | 16.5 | 9.2 | |||||
2d | 22 | 12.6 | |||||
12 | 1.75 | 1d | 12 | 5.4 | 14.4 | 14.8 | 12.4 |
1.5d | 18 | 8.6 | |||||
2d | 24 | 11.8 | |||||
2.5d | 32 | 15 | |||||
3d | 36 | 18.2 | |||||
12 | 1.5 | 1d | 12 | 6.4 | 14.4 | 14.8 | 12.4 |
1.5d | 18 | 10 | |||||
2d | 24 | 13.7 | |||||
2.5d | 32 | 17.3 | |||||
12 | 1.25 | 1d | 12 | 7.7 | 14.4 | 14.8 | 12.3 |
1.5d | 18 | 12 | |||||
2d | 24 | 16.2 | |||||
12 | 1 | 1d | 12 | 9.6 | 14.4 | 14.8 | 12.3 |
1.5d | 18 | 14.9 | |||||
2d | 24 | 20.1 | |||||
13 | 1.25 | 1d | 13 | 8.2 | 15.8 | 16.3 | 13.3 |
1.5d | 19.5 | 12.7 | |||||
2d | 26 | 17.2 | |||||
14 | 2 | 1d | 14 | 5.4 | 16.8 | 17.2 | 14.5 |
1.5d | 21 | 8.6 | |||||
2d | 28 | 11.7 | |||||
2.5d | 35 | 15.2 | |||||
14 | 1.5 | 1d | 14 | 7.3 | 16.8 | 17.2 | 14.4 |
1.5d | 21 | 11.3 | |||||
2d | 28 | 15.4 | |||||
14 | 1.25 | 1d | 14.4 | 9.1 | 16.8 | 17.2 | 14.3 |
1.5d | 16.4 | 10.2 | |||||
16 | 2 | 1d | 16 | 6.3 | 19 | 19.4 | 16.5 |
1.5d | 24 | 9.9 | |||||
2d | 32 | 13.5 | |||||
16 | 1.5 | 0.75d | 12 | 6.1 | 19 | 19.4 | 16.4 |
1d | 16 | 8.5 | |||||
1.5d | 24 | 13.1 | |||||
2d | 32 | 17.8 | |||||
18 | 2.5 | 1d | 18 | 5.8 | 21.5 | 22 | 18.6 |
1.5d | 27 | 9.1 | |||||
2d | 36 | 12.5 | |||||
18 | 2 | 0.75d | 13.5 | 5.2 | 21.5 | 22 | 18.5 |
1d | 18 | 7.3 | |||||
1.5d | 27 | 11.3 | |||||
18 | 1.5 | 0.5d | 9 | 4.4 | 21.5 | 22 | 18.4 |
0.75d | 13.5 | 7.1 | |||||
1d | 18 | 9.7 | |||||
1.5d | 27 | 15 | |||||
20 | 2.5 | 1d | 20 | 6.5 | 23.7 | 24.2 | 20.6 |
1.5d | 30 | 10.2 | |||||
2d | 40 | 14 | |||||
20 | 2 | 0.75d | 15 | 5.9 | 23.7 | 24.2 | 20.5 |
1d | 20 | 8.2 | |||||
1.5d | 30 | 12.7 | |||||
20 | 1.5 | 0.5d | 10 | 5 | 23.7 | 24.2 | 20.4 |
0.75d | 15 | 8 | |||||
1d | 20 | 10.9 | |||||
1.5d | 30 | 16.8 | |||||
22 | 2.5 | 0.75d | 16.5 | 5.1 | 26.3 | 26.8 | 22.6 |
1d | 22 | 7.1 | |||||
1.5d | 33 | 11.1 | |||||
2d | 44 | 15.2 | |||||
22 | 2 | 0.75d | 16.5 | 6.5 | 26.3 | 26.8 | 22.5 |
1d | 22 | 8.9 | |||||
1.5d | 33 | 13.8 | |||||
2d | 44 | 18.8 | |||||
22 | 1.5 | 0.5d | 11 | 5.5 | 26.3 | 26.8 | 22.4 |
0.75d | 16.5 | 8.7 | |||||
1d | 22 | 11.9 | |||||
1.5d | 33 | 18.4 | |||||
24 | 3 | 1d | 24 | 6.5 | 28.6 | 29.1 | 24.8 |
1.5d | 36 | 10.2 | |||||
2d | 48 | 13.9 | |||||
24 | 1.5 | 0.5d | 12 | 6.1 | 28.6 | 29.1 | 24.4 |
0.75d | 18 | 9.6 | |||||
1d | 24 | 13.1 | |||||
1.5d | 36 | 20.1 | |||||
26 | 1.5 | 0.5d | 13 | 6.7 | 31 | 31.5 | 26.4 |
0.75d | 19.5 | 10.4 | |||||
1d | 26 | 14.2 | |||||
27 | 2 | 0.5d | 13.5 | 5.1 | 32.2 | 32.7 | 27.5 |
0.75d | 20.25 | 8.1 | |||||
1d | 27 | 11.1 | |||||
1.5d | 40.5 | 17.1 | |||||
27 | 1.5 | 0.5d | 13.5 | 7 | 32.2 | 32.7 | 27.4 |
0.75d | 20.25 | 10.9 | |||||
1d | 27 | 14.8 | |||||
1.5d | 40.5 | 22.6 | |||||
30 | 3.5 | 0.75d | 22.5 | 5.1 | 35.2 | 35.7 | 30.9 |
1d | 30 | 7.1 | |||||
1.5d | 45 | 11.1 | |||||
30 | 2 | 0.5d | 15 | 5.8 | 35.2 | 35.7 | 30.5 |
0.75d | 22.5 | 9.2 | |||||
1d | 33 | 12.5 | |||||
30 | 1.5 | 0.5d | 15 | 7.9 | 35.2 | 35.7 | 30.4 |
0.75d | 22.5 | 12.3 | |||||
1d | 30 | 16.7 | |||||
1.5d | 45 | 25.5 | |||||
33 | 3.5 | 0.75d | 24.75 | 5.7 | 38.3 | 38.8 | 33.9 |
1d | 33 | 7.9 | |||||
1.5d | 49.5 | 12.4 | |||||
2d | 66 | 16.8 | |||||
33 | 2 | 0.5d | 16.5 | 6.5 | 38.3 | 38.8 | 33.5 |
0.75d | 24.75 | 10.2 | |||||
1d | 33 | 14 | |||||
1.5d | 49.5 | 21.4 | |||||
33 | 1.5 | 0.5d | 16.5 | 8.9 | 38.3 | 38.8 | 33.4 |
0.75d | 24.75 | 13.8 | |||||
1d | 33 | 18.6 | |||||
1.5d | 49.5 | 28.4 | |||||
36 | 3 | 0.5d | 18 | 4.6 | 42.1 | 42.6 | 36.8 |
0.75d | 27 | 7.3 | |||||
1d | 36 | 10.1 | |||||
36 | 2 | 0.5d | 18 | 7.1 | 42.1 | 42.6 | 36.5 |
0.75d | 27 | 11.1 | |||||
1d | 36 | 15.1 | |||||
36 | 1.5 | 0.5d | 18 | 9.7 | 42.1 | 42.6 | 36.4 |
0.75d | 27 | 14.9 | |||||
1d | 36 | 20.2 | |||||
39 | 4 | 0.75d | 29.3 | 0.75d | 45.1 | 45.6 | 40 |
1d | 39 | 1d | |||||
1.25d | 48.8 | 1.25d | |||||
1.5d | 58.5 | 1.5d | |||||
2d | 78 | 2d | |||||
39 | 3 | 0.5d | 19.5 | 0.5d | 45.1 | 45.6 | 40 |
0.75d | 29.25 | 0.75d | |||||
1d | 39 | 1d | |||||
1.25d | 48.8 | 1.25d | |||||
1.5d | 58.5 | 1.5d | |||||
39 | 2 | 0.5d | 19.5 | 7.9 | 45.1 | 45.6 | 39.5 |
0.75d | 29.25 | 12.2 | |||||
1d | 39 | 16.6 | |||||
1.25d | 48.8 | 1.25d | |||||
1.5d | 58.5 | 1.5d | |||||
42 | 3 | 0.5d | 21 | 0.5d | 48 | 48.5 | 42.8 |
0.75d | 31.5 | 0.75d | |||||
1d | 42 | 1d | |||||
1.5d | 63 | 1.5d | |||||
42 | 1.5 | 0.5d | 21 | 0.5d | 48 | 48.5 | 42.5 |
0.75d | 31.5 | 0.75d | |||||
1d | 42 | 1d | |||||
1.5d | 63 | 1.5d | |||||
48 | 3 | 0.5d | 24 | 0.5d | 55 | 55.5 | 48.8 |
0.75d | 36 | 0.75d | |||||
1d | 48 | 1d | |||||
1.5d | 72 | 20 | |||||
56 | 4 | 0.5d | 28 | 5.4 | 64 | 65 | 57 |
0.75d | 42 | 8.6 | |||||
1d | 56 | 11.8 | |||||
1.5d | 84 | 18 | |||||
60 | 3 | 0.5d | 30 | 7.9 | 69 | 70 | 60.8 |
0.75d | 45 | 12.4 | |||||
1d | 60 | 16.9 | |||||
1.5d | 90 | 25.9 | |||||
60 | 4 | 0.5d | 30 | 5.8 | 69 | 70 | 61 |
0.75d | 45 | 9.2 | |||||
1d | 60 | 12.6 | |||||
1.5d | 90 | 19.5 |
Remark: Please feel free to contact me if you have any questions. And we can receive customize.
Packing Details
* Inner: Plastic bag
Out: Carton
* Pallet / Wooden Crate.
* Customized packing.
Processing & Delivery Time
* Common products in one week.
* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc. 4-10days.
* Big size package is shipped by sea, 10-30days.
MOQ
* 10000 Piece/Pieces
* If no Stock, please contact the supplier to confirm it.
* Payment terms: L/C,T/T,Western Union
* Trade term: EXW/ FOB/ CIF.
Our Company:
XINXIANG BASHAN AERO MATERIAL CO.,LTD
Bashan factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc.
Contact:
Personne à contacter : Maggie Guan, +86 373 3091998
