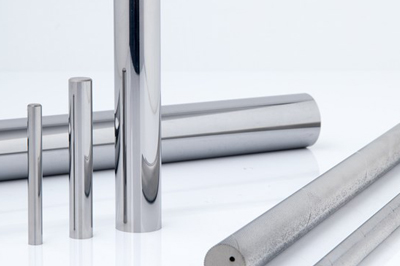

Carbide Rod With Coolant Hole
Quantité : 50T/month
Carbide Rods with One Coolant Duct
This blank is specially for some CNC blades or drills which needs duct for coolant to cool the increased heat during the high speed cutting or drilling. Standard specification and tolerance table please reference below.
|
Outer D(mm) |
OD Tol.(mm) |
Inner Hole d(mm) |
ID Tol.(mm) |
Hole center diviation value α |
Length（mm） |
L Tol.(mm) |
|
3.0 |
+0.50/+0.30 |
0.5 |
±0.10 |
0.10 |
330 |
+1.5 |
|
4.0 |
+0.50/+0.30 |
0.8 |
±0.10 |
0.10 |
330 |
+1.5 |
|
5.0 |
+0.50/+0.30 |
0.8 |
±0.10 |
0.13 |
330 |
+1.5 |
|
6.0 |
+0.50/+0.30 |
1.0 |
±0.15 |
0.15 |
330 |
+1.5 |
|
7.0 |
+0.60/+0.30 |
1.0 |
±0.15 |
0.15 |
330 |
+1.5 |
|
8.0 |
+0.60/+0.30 |
1.0 |
±0.15 |
0.15 |
330 |
+1.5 |
|
9.0 |
+0.60/+0.30 |
1.4 |
±0.15 |
0.20 |
330 |
+1.5 |
|
10.0 |
+0.60/+0.30 |
1.4 |
±0.15 |
0.20 |
330 |
+1.5 |
|
11.0 |
+0.60/+0.30 |
1.4 |
±0.15 |
0.28 |
330 |
+1.5 |
|
12.0 |
+0.60/+0.30 |
1.8 |
±0.15 |
0.30 |
330 |
+1.5 |
|
13.0 |
+0.70/+0.30 |
1.8 |
±0.15 |
0.34 |
330 |
+1.5 |
|
14.0 |
+0.70/+0.30 |
1.8 |
±0.15 |
0.37 |
330 |
+1.5 |
|
15.0 |
+0.70/+0.30 |
2.0 |
±0.20 |
0.40 |
330 |
+1.5 |
|
16.0 |
+0.70/+0.30 |
2.0 |
±0.20 |
0.40 |
330 |
+1.5 |
|
17.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
0.47 |
330 |
+1.5 |
|
18.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
0.50 |
330 |
+1.5 |
|
19.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
0.50 |
330 |
+1.5 |
|
20.0 |
+0.80/+0.30 |
2.5 |
±0.25 |
0.50 |
330 |
+1.5 |
|
21.0 |
+0.80/+0.30 |
2.5 |
±0.25 |
0.50 |
330 |
+1.5 |
|
22.0 |
+0.80/+0.30 |
2.5 |
±0.25 |
0.50 |
330 |
+1.5 |
|
23.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
24.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
25.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
26.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
27.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
28.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
29.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
|
30.0 |
+0.80/+0.30 |
3.0 |
±0.25 |
0.50 |
330 |
+1.5 |
Carbide Rods with Two Coolant Ducts, Straight
This blank is specially for some CNC blades or drills which needs duct for coolant to cool the increased heat during the high speed cutting or drilling. Standard specification and tolerance table please reference below.
Standard pitch
|
Outside Dia. Ø(mm) |
OD Tol. (mm) |
Inner d(mm) |
ID Tol.(mm) |
Distance between holds |
Hole center diviation value α |
L mm |
Tol. (mm) |
|
|
mm |
Tol. (mm) |
|||||||
|
6.0 |
+0.50/+0.30 |
0.8 |
±0.10 |
1.5 |
﹢0/-0.20 |
0.15 |
330 |
+1.5 |
|
7.0 |
+0.60/+0.30 |
0.8 |
±0.10 |
1.5 |
﹢0/-0.20 |
0.15 |
330 |
+1.5 |
|
8.0 |
+0.60/+0.30 |
1.0 |
±0.15 |
1.5 |
﹢0/-0.30 |
0.15 |
330 |
+1.5 |
|
9.0 |
+0.60/+0.30 |
1.0 |
±0.15 |
2.6 |
﹢0/-0.30 |
0.20 |
330 |
+1.5 |
|
10.0 |
+0.60/+0.30 |
1.0 |
±0.15 |
2.6 |
﹢0/-0.30 |
0.20 |
330 |
+1.5 |
|
11.0 |
+0.60/+0.30 |
1.2 |
±0.15 |
3.6 |
﹢0/-0.30 |
0.28 |
330 |
+1.5 |
|
12.0 |
+0.60/+0.30 |
1.2 |
±0.15 |
3.6 |
﹢0/-0.30 |
0.30 |
330 |
+1.5 |
|
13.0 |
+0.70/+0.30 |
1.2 |
±0.15 |
3.6 |
﹢0/-0.30 |
0.34 |
330 |
+1.5 |
|
14.0 |
+0.70/+0.30 |
1.5 |
±0.15 |
5.0 |
﹢0/-0.30 |
0.37 |
330 |
+1.5 |
|
15.0 |
+0.70/+0.30 |
1.5 |
±0.15 |
5.0 |
﹢0/-0.30 |
0.40 |
330 |
+1.5 |
|
16.0 |
+0.70/+0.30 |
1.5 |
±0.15 |
5.0 |
﹢0/-0.30 |
0.40 |
330 |
+1.5 |
|
17.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
6.2 |
﹢0/-0.30 |
0.47 |
330 |
+1.5 |
|
18.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
6.2 |
﹢0/-0.30 |
0.50 |
330 |
+1.5 |
|
19.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
6.2 |
﹢0/-0.30 |
0.50 |
330 |
+1.5 |
|
20.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
6.2 |
﹢0/-0.40 |
0.50 |
330 |
+1.5 |
|
21.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
6.2 |
﹢0/-0.40 |
0.50 |
330 |
+1.5 |
|
22.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
6.2 |
﹢0/-0.40 |
0.50 |
330 |
+1.5 |
|
23.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
7.5 |
﹢0/-0.40 |
0.50 |
330 |
+1.5 |
|
24.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
7.5 |
﹢0/-0.50 |
0.50 |
330 |
+1.5 |
|
25.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
7.5 |
﹢0/-0.50 |
0.50 |
330 |
+1.5 |
|
26.0 |
+0.80/+0.30 |
2.0 |
±0.20 |
7.5 |
﹢0/-0.50 |
0.50 |
330 |
+1.5 |
Personne à contacter : Silin Zhang, +86 0592 7797922
