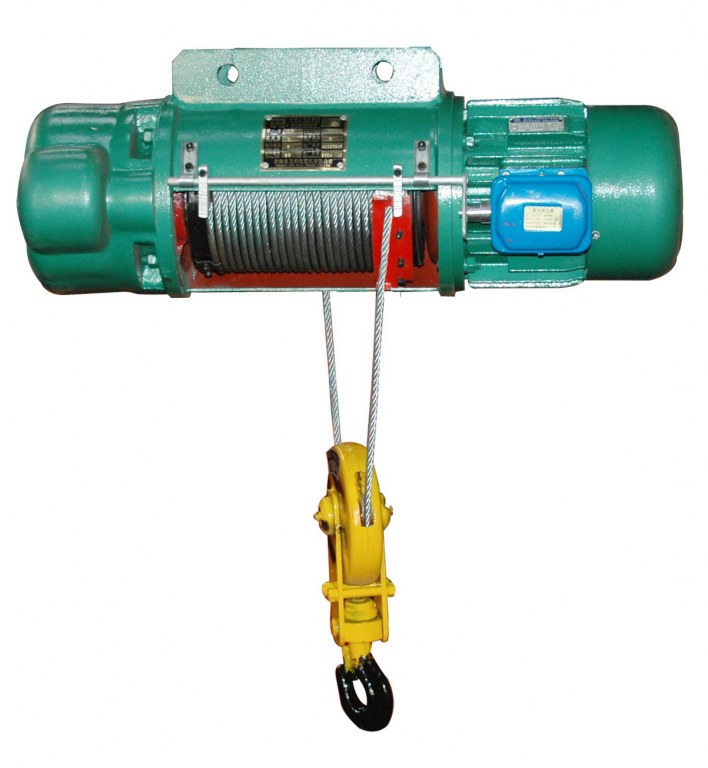

CD1,MD1 electric wire rope hoist

Quantité : 200 SETS   Prix : USD 800.00

This series electric hoist is designed and built to be a nation-standardized light lifting equipment with two models CD1 and MD1, its rated work classification is M3. The CD1 type has only one lifting speed, the MD1 has two instead. Both CD1 and MD1 hoist features compact body, small size, light weight, and modular convertible parts. Proving to be durable, easy for operation, installation and maintenance, these wire rope models are ideal use for 3 phase, light moderate duty service applications.

Model CD1/MD1 options include deck/base mount or lug suspended hoists, top-running or under-slung trolley / hoist configurations. The traveling configurations hoists usually can be installed separately on suspension I-steel runway (straight or curve) or box beam, aswell be incorporated into lifting system such as sing/double girder crane, cantilever crane, and gantry crane, and so on.

As a kind of general lifting equipment, model CD1/MD1 electric is equipped with Upper/Lower limit protector to ensure safe operation. It is widely used in material handling and cargo transloading in factory, mine field, railway paving site, goods station and warehouse. When working in low-speed mode, the MD1 model hoist runs more smooth and accurately and fully meets accurate operation requirements in precision assembly, mold spotting.

This series hoist can get a very large lifting height (36,42,48,56,60,68m) by simply modifying its design parameters, and it is also easy to be refitted and mounted on a support deck or foundation to work as electric hoist winch.

Work conditions:

Lifting Capacity:

0.5, 1, 2, 3, 5, 10t

Lifting Height:

6, 9, 12, 18, 24, 30m

Work classification :

M3, M4(Cap. 10t)

Duty factor:

25%

Power supply:

3-phase AC 380, 50Hz

Ambient temperature :

-20~40 C

IP Code:

IP55 or IP54

Features:

1. Competitive prices
2. Small order acceptable
3. OEM, ODM accepted
4. Customer's design&logo accepted

Table.1 CD1/MD1 Traveling Type Hoist Parameters
Lifting Cap.(t) 0.5 1 2 3 5 10
Lifting Ht.(m) 6,9,12,18,24,30
Lifting Spd.(m/min) 8(CD), 8/0.8(MD) 7(CD)
7/0.7(MD)
Traversing Spd.(m/min) 20, 30
Work Classification M3 M3 M3 M3 M3 M3/M4
Main Motor 0.8 (kw) 1.5(kw) 3.0(kw) 4.5(kw) 7.5(kw) 13(kw)
Low-speed Motor 0.2 (kw) 0.2(kw) 0.4(kw) 0.4(kw) 0.8(kw) 0.8(kw)
Traveling Motor 0.2 (kw) 0.2(kw) 0.4(kw) 0.4(kw) 0.8(kw) 0.8(kw)×2
I-steel Rail 16-28b 16-28b 20a-45c 20a-45c 25a-63c 40a-63c
Wire Rope 5NAT6×37 8NAT6×37 11NAT6×37 13NAT6×37 16NAT6×37 16NAT6×37
Turning Radius(m) 1 1-3.2 1.2-3.5 1.2-3.5 1.5-4 3-7.2
Power Supply 3-Phase 380V AC
Weight(Kg) 135-195 180-255 250-360 320-440 590-800 1080-1500


Localisation : 131#, Economic Development ZoneChibi,Hubei,China, 434300 Chibi,
Personne à contacter : Ananda Ho, 86 0715 5250488
