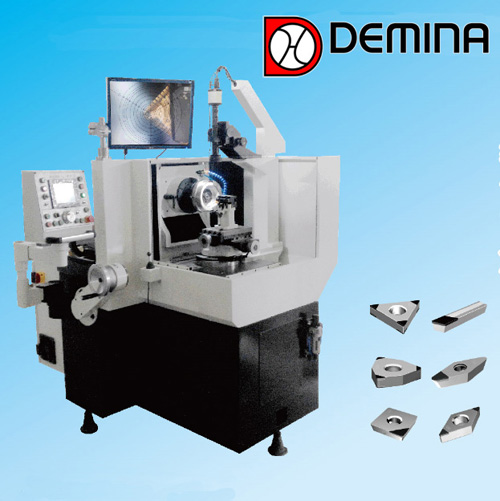

CNC tool grinder for PCD&PCBN inserts and resharping

Quantité : 1 set Min.

BT-150M is designed for the economical manufacturing and regrinding of cutting tools made from PCD, PCBN, CVD, tungsten, carbide and other materials. It can grind angles and radii on standard and special turning and milling inserts, boring tools, grooving tools and many types of special turning tools.


I. Features:
1. Mechanical Structure: The base of machine is made of solid casting with high quality. It can meet grinding any requirements of hard material.
2. Grinding Spindle: With high precision and variable frequency, the spindle power is 3Kw, max speed is 3000r/min. The inner of spindle is cooled by recycling water. The radial run-out is 0.002mm and axial run-out is 0.003mm.
3. The feed slider is driven by pressure air, ensuring high production efficiency and good finish on cutting edges.
4. Wheel Oscillation: The grinding wheel oscillation is controlled by PLC program and move very smoothly. Oscillation length, position and frequency are adjustable on the panel;
5. CCD Measurement: Tool CCD image can be displayed, observed and measured on line with help of hairline.
6. Declination Lock: The grinding spindle declines along the circular guide smoothly and radial lock can be made, greatly enhancing the rigidity of the equipment. After declination, the center line of the grinding wheel keeps the same height due to special mechanical design,so coarse and fine grinding can be made without declination adjustment.

Localisation : Room 1-6#, Building 2, Hongfu Science Park, 102209 Beiqijia Town, Changping District,Beijing,
Personne à contacter : Rita Hou, 0086 1 62965622 218
