Coating Thickness Gauge AC-110C/CS
Quantité : 1 piece
Product Description：

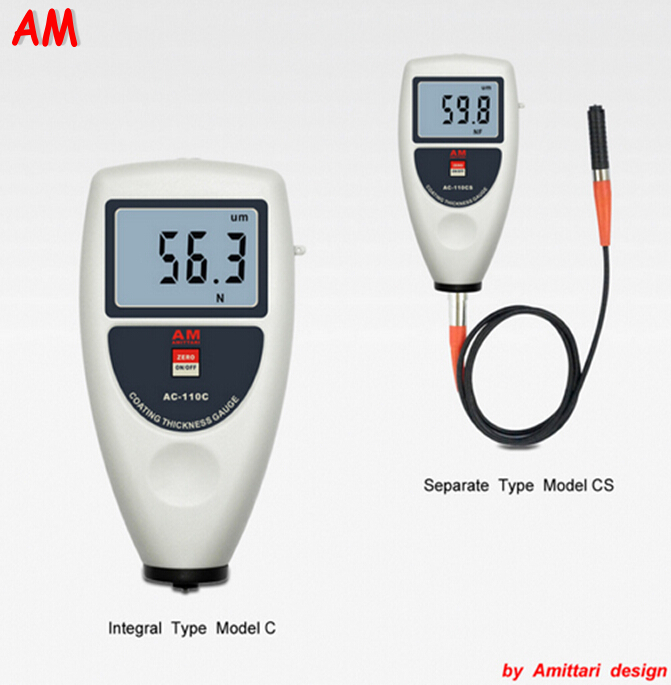

The Basic Type Coating Thickness Gauge AC-110 Series have two types: Type C ( Integral Type ), Type CS ( Separate Type ); Suitable for automotive, paint layer coating t hickness measurement; Integral Type suitable for single-hand operation, large probe with large c ontact surface have better stability, users can get continuous, good repetitive and precis e measurements. Separate Type can provide several type probe, measure can be more flexibility .
Product Parameters：
|
Measuring Range |
0~1250 um |
|
0~50mil (other range may be specified) |
|
|
Resolution |
0.1 um (0~99.9um)/1 um (over 100um) |
|
Accuracy: |
1~3%n or 2.5 um or 0.1mil (Whichever is the greater) |
|
Minimum Measurement Area |
6 mm |
|
Minimal Surface |
F Type convex1.5 mm / concave 25 mm |
|
NF Type convex 3 mm / concave 50mm |
|
|
Operating Condition |
Temp: 0~50°C / |
|
Humidity: <95%</p>
|
|
|
Size |
120x63x25 mm |
|
Power Supply |
2x1.5vAAA Um-4 Battery |
|
Weight |
90 g (Not including batteries) |
Product Accessories
|
Standard Accessories |
Main Unit |
|
Calibration Foils |
|
|
Substrate ( Iron ) |
|
|
Substrate ( Aluminium ) |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories
|
USB data output |
|
Bluetooth data output |
