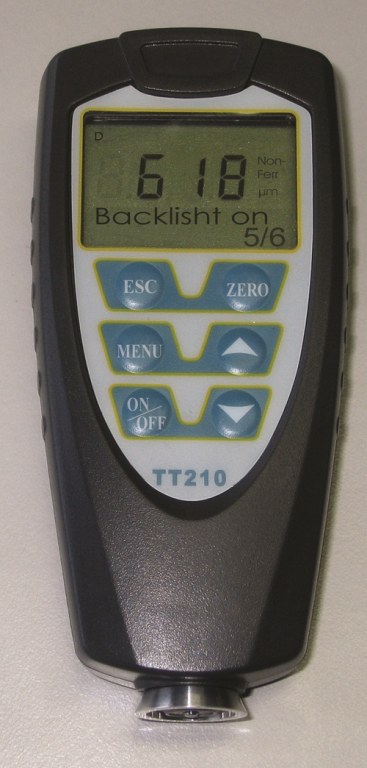

Coating thickness gauge TT210
Quantité : 100 Prix : USD315/pc
Product Introduction
Time TT210 Coating Thickness Gauge is designed for precise measurements of coatings on all Ferrous and Non-Ferrous metals. With built in dual mode probe, Professional fully automatic Paint Thickness Gauge with memory for 500 measurements and Min/Max/Dev statistical data features. Data can be transferred to a PC by using optional RS232 cable or printed directly with optional portable printer. Supplied with Test certificate.
Features
Two measuring methods: magnetic induction (F) and eddy current (N)
Magnetic induction (F) method is used to measure the thickness of non-magnetic coating on ferrous metal
Eddy current (N) method is used to measure the thickness of non-conducting coating on non-ferrous materials
Automatic recognition of substrate
Automatic selection of measuring methods
5 statistical ways: Mean values / Max. values / Min. values / testing numbers.(No.) / standard deviations (S.DeV)
Upper-lower limit setting and sound alarm
Data output to printer or PC by RS232 cable
500 readings can be stored
2 measuring modes: continuous / single
2 stop ways: Manual/automatic
Technical Specification
| Probe types | F | N | |
| Measuring methods: | magnetic induction | eddy current | |
| Measuring range: | 0 to 1250 μm |
0 to 1250 μm 0 to 40μm (for chromeplate on copper) |
|
| Minimum resolution: | 0.1μm | ||
| Tolerance : | One point calibration | ±(3%H+1) | ± (3%H+1.5) |
| H means the thickness of tested piece | |||
| Two points calibration | ±[(1~3)%H+1] | ±[(1~3)%H+1.5] | |
| H means the thickness of tested piece | |||
| Measuring condition | Min. curvature radius (mm) | Convexity 1.5 | Convexity 3 |
| Min. testing area diameter (mm) | Φ7 | Φ5 | |
| Critical thickness of substrate | 0.5 | 0.3 | |
| Power supply | Battery AAA 1.5V (2pcs) | ||
| Working Temperature | 0-40°C | ||
| Dimensions | 110mm×50mm×23mm | ||
| Weight | 100g | ||
Standard delivery
Main unit
Calibration foil set
Substrate
Battery
Waist pack for main unit
Instruction manual
TIME certificate
Warranty card
Optional accessary
Printer TA230
Connecting cable
