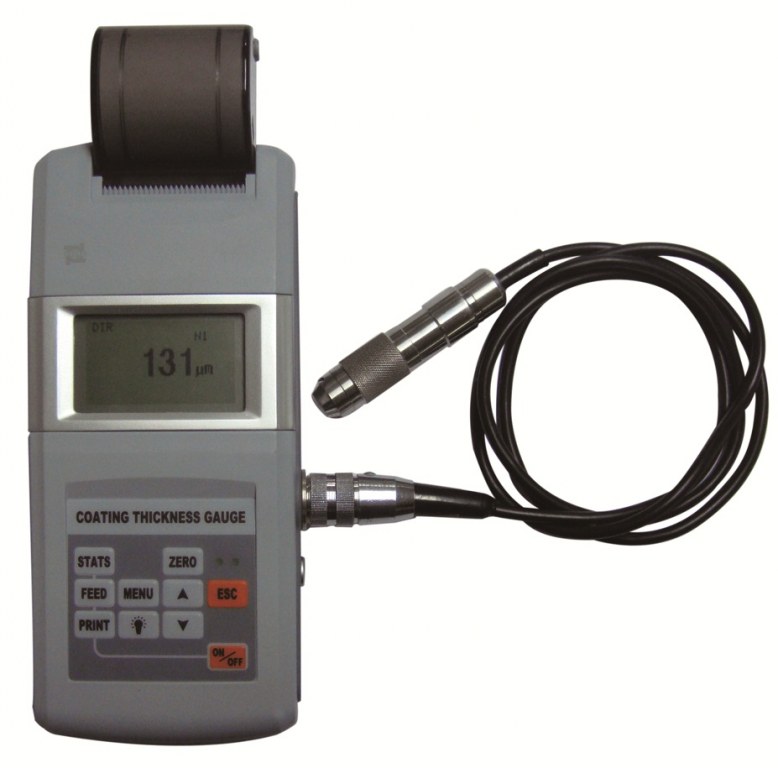

Coating thickness gauge TT270
Quantité : 100 Prix : USD520/pc
Features
Two measuring methods: magnetic induction (F) and eddy current (N). When F probe is equipped, it can measure the non-magnetic coating in magnetism substrate, when N probe is equipped, it measure the non-conductive coating on non-magnetism substrate Click here for details
6 types of probes are available for various applications: F400,F1,F1/90,F10,N1,CN02
2 measurement modes: continuous / single
5 statistical ways: Mean values / Max. values / Min. values / testing numbers.(No.) / standard deviations (S.DeV)
640 measured values can be stored
Integrated with printer for convinient use
Low battery indication
2 switch off modes: manual and auto
Technical Specification
| Measuring range | Refer to the table below |
| Probes available | |
| Tolerance | |
| Minimum resolution: | |
| Measuring condition | |
| Operation language | English |
| Standards | DIN, ISO, ASTM,BS |
| Calibration | Zero and foil calibration |
| Statistics | Number of measurements, mean, standard deviation,maximum and minimum of 3000 readings |
| Data memory | 640 readings |
| Limits | Adjustable with alarm |
| Interface | RS-232 |
| Working temperature | 0-40℃ |
| power supply | NiMHrechargeable batteries 1.25V |
| Dimensions | 230mm×86mm×47mm |
| Weight | Approx. 530g |
Optional probes and technical specification
| Probe model | F400 | F1 | F1/90º | F10 | N1 | CN02 | ||
| Operating principle | Magnetic induction | Eddy current | ||||||
| Measuring range (µm) | 0-400 | 0-1250 | 0-10000 |
0 to 1250 μm 0 to 40μm (for chromeplate on copper) |
10~200 | |||
| Low range resolution (µm) | 0.1 | 0.1 | 10 | 0.1 | 1 | |||
| Accuracy | One-point calibration (µm) | ±(3%H+1) | ±(3%H+10) | ±(3%H+1.5) | ±(3%H+1) | |||
| Two-point calibration (µm) | ±[(1~3)H%+0.7] | ±[(1~3)H%+1] | ±[(1~3)%H+10] | ±[(1~3)%H+1.5] | - | |||
| Measuring conditions | Min curvature of the min area (mm) | Convex | 1 | 1.5 | Flatten | 10 | 3 | Flatten |
| Diameter of the min area (mm) | φ3 | φ7 | φ7 | φ40 | φ5 | φ7 | ||
| Critical thickness of substrate (mm) | 0.2 | 0.5 | 0.5 | 2 | 0.3 | unlimited | ||
Standard delivery
Main unit
Calibration foil set
Substrate
Charger
Probe
Instruction manual
TIME certificate
Warranty card
Optional accessary
Other probes
Communication cable
