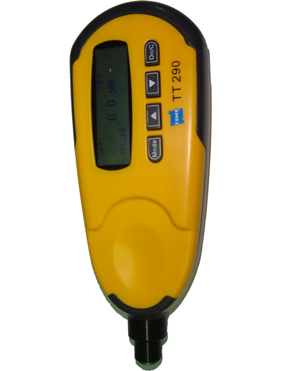

Coating thickness gauge TT290
Quantité : 100 Prix : USD285/pc
Features
Integrated with F probe
Two working mode: direct and batch
500 measurement values can be stored
Five statistical values: mean value (MEAN), maximum value (MAX), minimum value (MIN), measurement times (NO.) and standard deviation (S.DEV)
Print-out function, capable of printing out measured values and statistical values
Low battery indication
Buzzer prompt of operations
Error messages
With backlight
Shut off automatically or manually
Technical Specification
| Probe Types | F | |
| Measuring methods | Magnetic induction | |
| Measuring range | 0~1250μm | |
| Display resolution | 0.1μm | |
| Tolerance | Tolerance | ± (3%H+1) |
| Two points calibration | ± [(1%~3%) H+1] | |
| Measuring condition | Min.curvature radius(mm) | convexity 1.5 |
| Min.testing area diameter(mm) | Ø7 | |
| Critical thickness of substrate (mm) | 0.5 | |
| Power supply | Rechargeable NiMH battery(2pcs) | |
| Working temperature | 0~40℃ | |
| Dimensions(mm) | 145×60×27 | |
| Weight (g) | 150 | |
Standard Delivery
Main unit
Calibration foil set
Substrate
AAA1.5V battery
Instruction manual
TIME certificate
Warranty card
Optional Accessories
TA230 Printer
