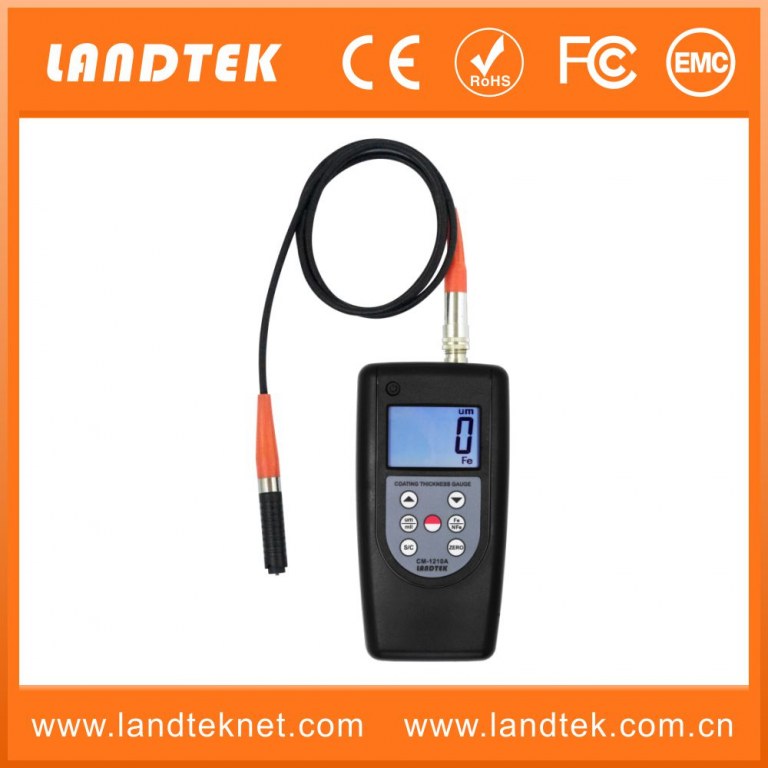

Coating Thickness Meter CM-1210A

Coating Thickness Meter

Size： CM-1210A

Applications：

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used t o measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer , copper tile, aluminium tile, some alloy tile, paper etc.

The N probes measure the thickness of non- conductive coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the

coating thickness of curved objects and tiny objects.）

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth data output” choice.

* Separate Type can provide several type probe, measure can be more flexibility.

Details:

Operating Principle: Magnetic Induction / Eddy Current (F / NF)

Measuring Range: 0~2000 um / 0~80 mil

Resolution: 0.1 um / 1 um

Min. Radius Workpiece: F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm

Min. Measuring Area: 6 mm

Min. Sample Thickness: 0.3 mm

Accuracy: ± 1~3%n or ± 2.5 um

Auto Power Off

Metric / Imperial : Convertible

Battery Indicator: Low Battery Indicator

Operating Conditions: Temp. 0~40 °C, Humidity: 10~90 %RH

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions : 140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )

Weight : 215 g (Not Including Batteries)

Accessories:

Standard Accessories:

1. Main Unit

2. Probe (F Type & NF Type)

3. Calibration Base Set (F Type / NF Type) CTG-BS

4. Calibration Foils CTG-CF (1 set, 4 pieces)

5. Carrying Case

6. Operation Manual

Optional accessories:

1. USB, RS-232C data cable with software

2. Bluetooth data out put with software

For more details,please do not hesitate to contact us.Thank you!
