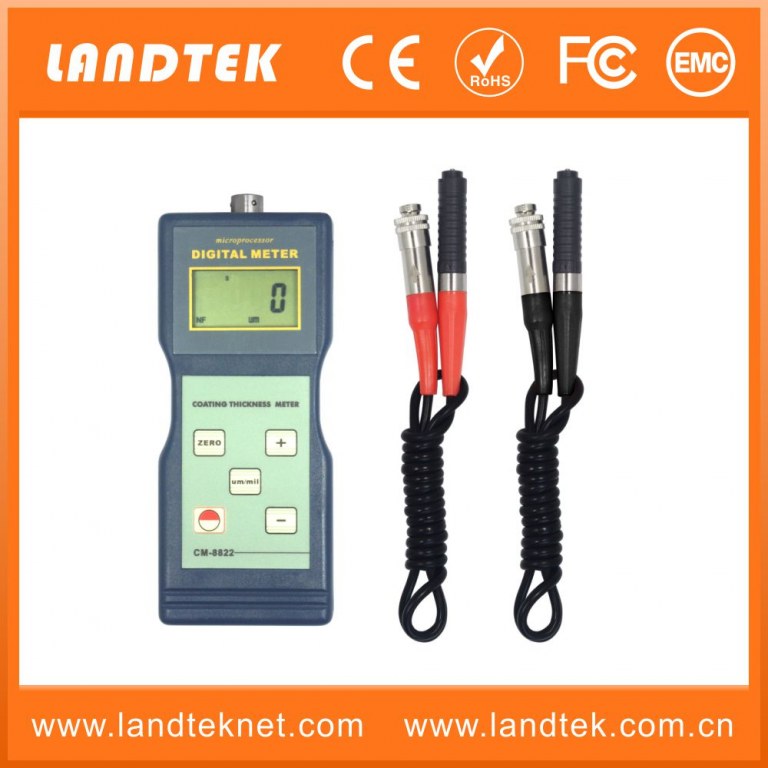

COATING THICKNESS METER CM-8822
Quantité : 2000 Prix : $1
COATING THICKNESS METER
Size: CM-8822
Applications:
Application: used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storag e tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Features:
Measuring method: F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium ti le, some alloy tile, paper etc.
Base: iron, nickle etc.(magnetic materials)
Measuring method: N probe
Coating: anodizing, varnish, paint, enamel, plastic coatings, powder,etc.(non-conductive coatings)
Base: aluminum, brass, non-magnetic stainless steel, etc(non-magnetic materials)
Details:
| Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
| Measuring Range | 0~1000 um / 0~40 mil |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AA (UM-3) Battery |
| Dimensions | 161 x 69 x 32 mm |
| Weight | 250 g (Not Including Batteries) |
For more details,please do not hesitate to contact us.Thank you!
