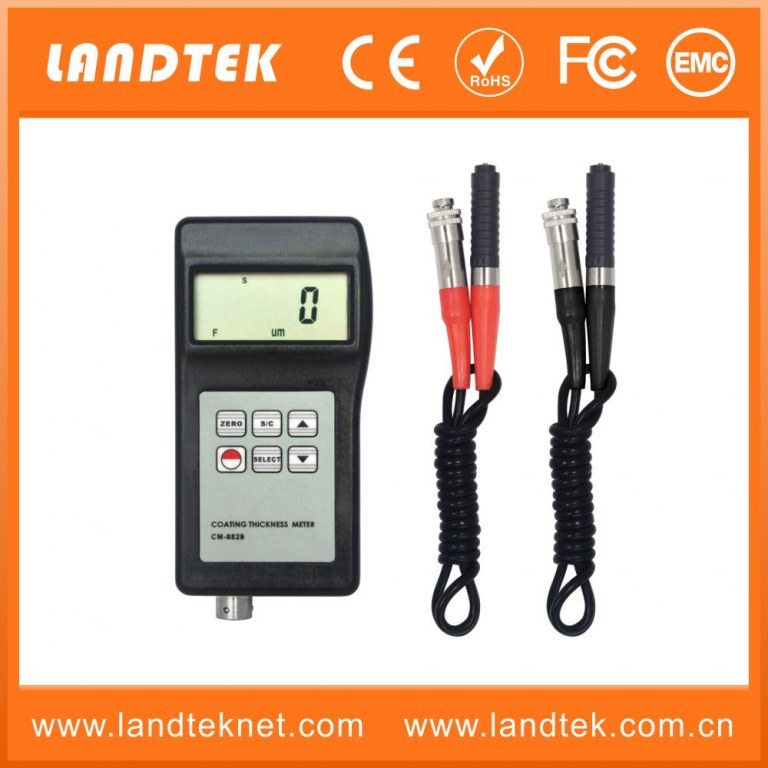

Coating Thickness Meter CM-8829S
Quantité : 2000 Prix : $1
Coating Thickness Meter
Size: CM-8829S
Applications:
Coating Thickness Meter CM-8829S has two measuring methods to choose.How to choose?
Measuring method: F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium ti le, some alloy tile, paper etc.
Base: iron, nickle etc.(magnetic materials)
Measuring method: N probe
Coating: anodizing, varnish, paint, enamel, plastic coatings, powder,etc.(non-conductive coatings)
Base: aluminum, brass, non-magnetic stainless steel, etc(non-magnetic materials)
Features:
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Details:
Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
Measuring Range | 0~1250 um / 0~50 mil |
Resolution | 0.1 um / 1 um |
Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
Min. Measuring Area | 6 mm |
Min. Sample Thickness | 0.3 mm |
Accuracy | ± 1~3%n or ± 2.5 um |
Auto Power Off | |
Metric / Imperial | Convertible |
Battery Indicator | Low Battery Indicator |
Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
Dimensions | 126 x 65 x 27 mm |
Weight | 115 g (Not Including Batteries) |
For more details,please do not hesitate to contact us.Thank you!
