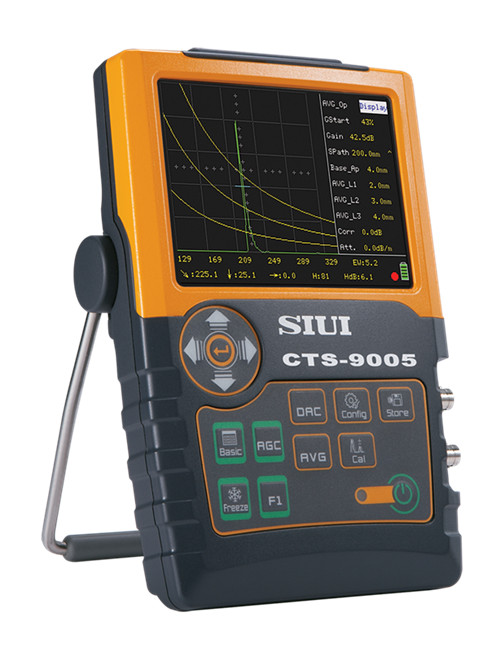

Compact Ultrasonic Flaw Detector -- CTS-9005

Superior Features:

Max. sampling rate 240MHz; Measurement resolution 0.1mm.

Operating frequency range: 0.5~10MHz.

20~500Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.

The AGC (auto gain control) function for efficient flaw detection.

The AVG curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.

The 5.7” color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.

Peak memory function facilitates quick scanning and measurement on work pieces.

Three different color schemes can meet the requirement of different application environments and habits.

Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.

Application:

It is suitable for inspecting flaw position and size, which can be widely used for various detection demands, such as and tubes, welding lines, pressure vessels, forged pieces, coarse-crystal material and airplane parts.
