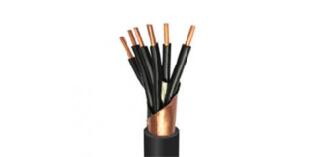

Copper Tape Screened Control Cable
Quantité : 1000m Prix : 0.1-100USD
Copper tape screened control cable is mainly used in anti-interference circuit system. These copper control cables feature a plain annealed cu conductor and PVC insulation and sheath mounting cu tape with a voltage of 450/750v. Copper wire control cable could be designed to have performance of LSZH, flame retardant and fire resistance according to requirement. It is normally referred to screen cable or CTS control cable, we supply these copper tape screen cable by standard of IEC 60227.
Copper Tape Screened Control Cable Parameter
|
Cross-Sectional Area |
Thickness of Insulation |
Thickness of Copper Tape |
Thickness of Sheath |
Overall Diameter (mm) |
Min resistance of insulation at 70℃ |
Max.D.C resistance of at 20℃ |
Approx Weight |
Approx Weight |
|
|
mm² |
mm |
mm |
mm |
min |
max |
MΩ/km |
MΩ/km |
(kg/km) |
(kg/km) |
|
4x0.75 |
0.6 |
0.05-0.1 |
1.2 |
8.1 |
9.7 |
0.012 |
24.5 |
144 |
144 |
|
4x1 |
0.6 |
0.05-0.1 |
1.2 |
8.4 |
10.2 |
0.011 |
18.1 |
153 |
153 |
|
4x1.5 |
0.7 |
0.05-0.1 |
1.2 |
9.5 |
11.4 |
0.011 |
12.1 |
190 |
190 |
|
4x2.5 |
0.8 |
0.05-0.1 |
1.5 |
10.9 |
13.1 |
0.01 |
7.41 |
276 |
276 |
|
4x4 |
0.8 |
0.05-0.1 |
1.5 |
12.5 |
15.1 |
0.0085 |
4.61 |
367 |
367 |
|
4x6 |
0.8 |
0.05-0.1 |
1.5 |
13.6 |
16.5 |
0.007 |
3.08 |
467 |
467 |
|
4x10 |
1 |
0.05-0.1 |
1.7 |
17.1 |
20.7 |
0.0065 |
1.83 |
728 |
728 |
|
7x0.75 |
0.6 |
0.05-0.1 |
1.2 |
9.3 |
11.2 |
0.012 |
24.5 |
178 |
178 |
|
7x1.0 |
0.6 |
0.05-0.1 |
1.2 |
9.7 |
11.7 |
0.011 |
18.1 |
209 |
209 |
|
7x1.5 |
0.7 |
0.05-0.1 |
1.5 |
11 |
13.3 |
0.011 |
12.1 |
239 |
239 |
|
7x2.5 |
0.8 |
0.05-0.1 |
1.5 |
13.3 |
16.1 |
0.01 |
7.41 |
398 |
398 |
|
7x4 |
0.8 |
0.05-0.1 |
1.5 |
14.6 |
17.6 |
0.0085 |
4.61 |
528 |
528 |
|
7x6 |
0.8 |
0.05-0.1 |
1.5 |
16 |
19.4 |
0.007 |
3.08 |
717 |
717 |
|
7x10 |
1 |
0.05-0.1 |
1.7 |
20.7 |
25.1 |
0.0065 |
1.83 |
1145 |
1145 |
|
10x0.75 |
0.6 |
0.05-0.1 |
1.5 |
11.3 |
13.7 |
0.012 |
24.5 |
214 |
214 |
|
10x1 |
0.6 |
0.05-0.1 |
1.5 |
12.5 |
15.1 |
0.011 |
18.1 |
300 |
300 |
|
10x1.5 |
0.7 |
0.05-0.1 |
1.5 |
14.2 |
17.2 |
0.011 |
12.1 |
367 |
367 |
|
10x2.5 |
0.8 |
0.05-0.1 |
1.7 |
16.5 |
20 |
0.01 |
7.41 |
572 |
572 |
|
10x4 |
0.8 |
0.05-0.1 |
1.7 |
18.6 |
22.5 |
0.0085 |
4.61 |
787 |
787 |
|
10x6 |
0.8 |
0.05-0.1 |
1.7 |
20.5 |
24.8 |
0.007 |
3.08 |
992 |
992 |
Description of Copper Tape Screened Control Cable
Conductor: Solid or Stranded Copper
Insulation: PVC/PVC(XLPE)
Screen: Copper tape Screen
Sheath: PVC
Rated voltages: 450/750V
Max. Continuous working temp of conductor: 70
Upon short circuit (Max. Duration time 5s) the Max.
Temperature of conductor not higher than160°C;
Ambient temperature of installation not less than 0°C.
Standard: IEC 60227, IEC60228, AS/NZS 5000.2
China Standard: GB9330
Application Of Copper Tape Screened Control Cable
The control cable with copper tape for cable screen features moisture-proof, corrosion-resistant and damage-proof. These copper tape screen control cables widely used as the connecting wire of instrument insulation, control equipment and power distribution facilities.
As a professional flex cable factory, we can offer different kinds of low smoke zero halogen power cable for sale, if you are interested, please contact us.
