Corner Tube Coal Fired Boiler in Sugar Industry|DHL corner tube chain grate boiler

Quantité : 1 set   Prix : USD 10000

Introduction of Sugar Manufacturing Process
The bagasse produced after extracting the juice from sugar cane is used as fuel to generate steam in factories. Increasingly large amounts of bagasse are being made into paper, insulating board, and hardboard and so on.
Nowadays, harvesting of both cane and sugar beet is done primarily by machine, although in some states it is also done by hand. The harvested cane stalks and beets are loaded mechanically into trucks or railroad cars and taken to mills for processing into raw sugar. Once there, they are cleaned, washed, milled to extract juice, filtered, and purified. The result is a clear, sugar-filled juice.
After being purified, the clear juice undergoes vacuum evaporation to remove most of the water. In this process, four vacuum-boiling cells are arranged in series so that each succeeding cell has a higher vacuum. The vapors from one body can thus boil the juice in the next one, a method called multiple-effect evaporation. Next, the syrupy solution is vacuum-crystallized to form sugar crystals. The remaining liquid is removed using centrifugaling and drying, and the sugar is packaged.
Introduction of DHL corner tube chain grate boiler

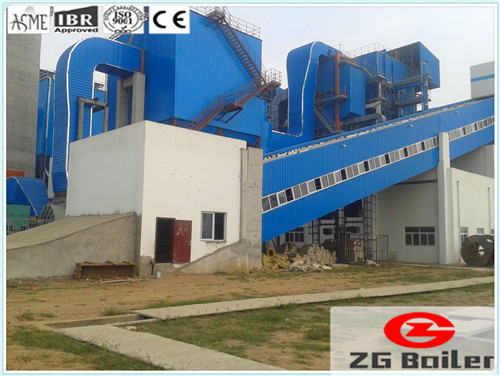

Corner Tube Coal Fired Boiler in Sugar Industry can help you save money and reduce cost during sugar manufacturing process. DHL corner tube chain grate boiler adopts national patent technology, and with self supporting membrane water-cooling wall. This boiler has high thermal efficiency, low operation cost, long-term trouble-free operation, and low carbon concentration of outlet of the boiler. If you want to make best sugar, just choose corner tube coal fired boiler manufacturing by ZG Boiler.
Parameters of DHL corner tube chain grate boiler
Type: DHL
Capacity: 20-35t/h
Hot Power: 20-116MW
DHL Pressure: 1.0-2.5Mpa
DHL Temperature: 130℃
Features of DHL corner tube chain grate boiler
* adopting flying dust re-combustion equipment
* light grate wall structure, good heat preservation performance
* no ash leakage, and environment-friendly
* furnace arch can be designed to meet customers' different requirements for types of coal.
Application:
It can be used as heat source host machine for urban and industrial mining enterprises and other central heating, and also can be used as a thermal power plant boiler to adjust urban heat supply network operation. The boiler can provide the process of hot water to meet the requirements of industrial and mining enterprises as well.
Main Customers:
ZG-30/3.82/330-T-M 30T Corner tube Biomass Boiler to Mexico
DHL46-1.6/150/90-AⅡ 70t Corner Tube Chain Grate Boiler in Turkey
DHL45-1.6/130/70 45 ton corner tube boiler exported to Costa Rica
DHL45-1.6/130/70 China 116 MW Corner Tube Hot Water Boiler
