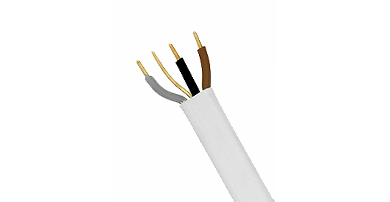

CU/PVC/PVC 6243Y Flat Three And Earth Cable
JENUINcable is a Chinese electric wire supplier with more than 20 years of experience in designing, manufacturing, and selling green environmental–protective wires and cables.we provide xlpe cable,pvc insulated cable,pvc sheathed cable,lszh cable and so on.
BS6004 6243Y cables refer to the flat three cores and circuit protective core (earth core) with a voltage of 300/500v.
6243y flat 3 core cable is normally used fixed installation in domestic locations and industrial lighting in both dry and damp walls, and also can be fixed in cable tray, embedded in plaster and cable trunking.
These 3 core flat submersible cables can be designed for low smoke zero halogens (LSZH) as 6241B.
CU/PVC/PVC 6243Y Flat Three And Earth Cable Parameter
Number and Nominal Cross Sectional Area of Conductors |
Nominal Stranding of Conductor |
Nominal Stranding of CPC |
Nominal Radial Thickness of insulation |
Nominal Radial Thickness of Sheath |
Overall Diameter |
Approximate Weight |
|
(mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
Lower Limit (mm) |
Upper Limit (mm) |
(kg/km) |
3 x 1.0 |
1 / 1.13 |
1 / 1.13 (1.0mm2) |
0.6 |
0.9 |
4.0 x 9.6 |
4.7 x 11.0 |
91 |
3 x 1.5 |
1 / 1.38 |
1 / 1.13 (1.0mm2) |
0.7 |
0.9 |
4.4 x 10.5 |
5.4 x 12.5 |
115 |
3 x 2.5 |
1 / 1.78 |
1 / 1.13 (1.0mm2) |
0.8 |
1.0 |
5.2 x 12.5 |
6.2 x 14.5 |
170 |
Description of CU/PVC/PVC 6243Y Flat Three And Earth Cable
Conductor:Annealed Stranded class 1 or class 2
Rated voltage:300/500V
Insulation: PVC
Sheath: PVC
Application Of CU/PVC/PVC 6243Y Flat Three And Earth Cable
Widely used in lighting and domestic buildings. These 3 core flat submersible cables are particularly suited for installation as meter tails and are used for fixed installation in the condition of the dry or damp occasion.
6243y cablecan be laid in conduit, cable trunking and cable ducting. Or where there is little risk of mechanical damage these cables can be fixed with clip directly or by cable tray or embedded or in free air. They are not allowed to be laid underground.
We provide many products iniclude 6193y,flat 3 core cable,3 core submersible cable,3 core flat submersible cables,6243y cable,6243y,3 core flat cable and so on,and the 3 core flat submersible cables price is very reasonable.
