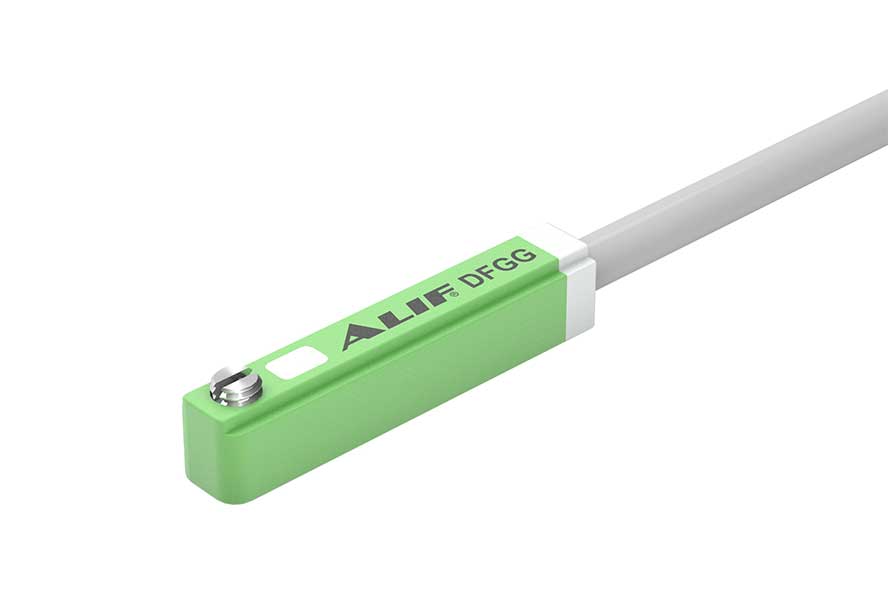

DFGG Magnetic Cylinder Sensor
DFGG series magnetic sensor
DFGG series dedicated to AirTAC 4.35*4.55 square groove, can be replaced with AIRTAC DS1-G magnetic sensor.
Specification of DFGG Magnetic Sensor Cylinder
|
Model |
DFGG |
DFGGN |
DFGGP |
|
Switching Logic |
Normally Open |
Solid State Output, Normally Open |
|
|
Output Type |
2 Wire Solid State |
NPN Current Sinking |
PNP Current Sinking |
|
Voltage Range |
10～30V DC |
5～30V DC |
|
|
Sensor Current |
1～50 mA |
0～200 mA |
|
|
Switch Rating |
1.5 W Max. |
6 W Max. |
|
|
Consumption |
/ |
3 mA Max. |
|
|
Voltage Drop |
2.65V Max.@50mA |
0.5V Max.@200mA |
|
|
Leakage Current |
90 μA Max.@24V |
0.01 mA Max. |
|
|
Indicator |
Red LED |
Red LED |
Green LED |
|
Cable |
Φ2.8, 2C, Grey Oil-Resistant PVC |
Φ2.8, 3C, Grey Oil-Resistant PVC |
|
|
Sensitivity |
40～800 Gauss |
40～800 Gauss |
|
|
Sensor Frequency |
900Hz |
900Hz |
|
|
Temperature |
-10～70℃ |
-10～70℃ |
|
|
Shock |
50G |
50G |
|
|
Vibration |
9G |
9G |
|
|
Ingress Protection |
IP68 (BJ-R200810105A-04) |
IP68 (BJ-R200810105A-04) |
|
|
Protection Circuit |
Surge Suppression |
Power Reverse Polarity; Surge Suppression |
|
|
CE Certificate NO. |
E8A 17 04 53334 007 |
E8A 17 04 53334 008 |
|
|
CNEx Certificate NO. |
CNEx21.2238X |
CNEx21.2239X |
|
|
RoHS2.0 NO. |
RoHS 2011/65/EU & (EU) 2015/863 |
||
|
Reach NO. |
(EC) N 1907/2006 (REACH) |
||
If you want to buy a miniature magnetic reed switch, please contact us.
Depending on the ALIF sensor cylinder type, there are different installation methods. Mounting methods also vary by ALIF sensor type, so it's important to know the ALIF sensor type's cylinder type.
