DFGH Magnetic Cylinder Sensor
DFGH series magnetic sensor

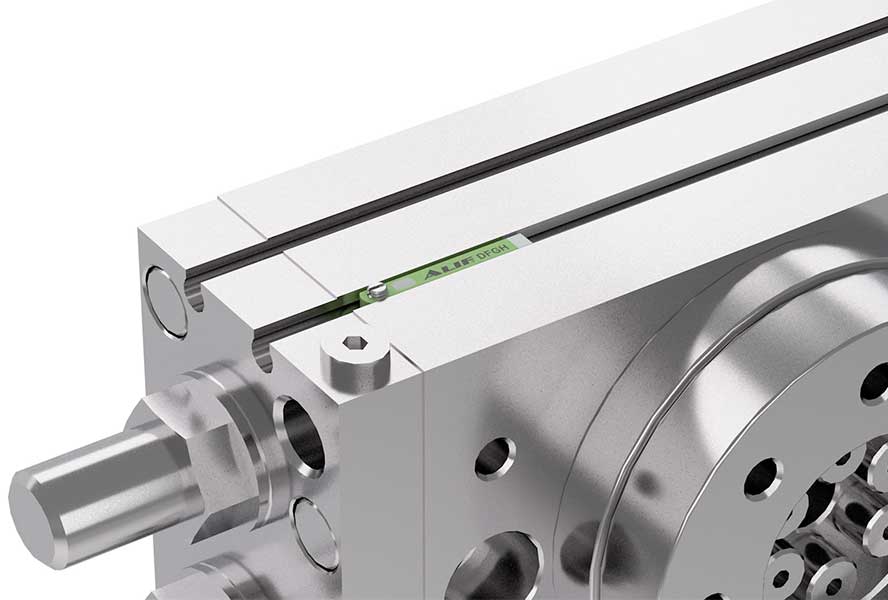

DFGH series is suitable for SMC, AIRTAC 4φ diameter C-shaped groove cylinder, and is generally used for AIRTAC DS1-H magnetic sensor. The arc shape design can effectively reduce the burr blocking in the groove during installation.
Specification of DFGH Magnetic Sensor Cylinder
|
Model |
DFGH |
DFGHN |
DFGHP |
|
Switching Logic |
Normally Open |
Solid State Output, Normally Open |
|
|
Output Type |
2 Wire Solid State |
NPN Current Sinking |
PNP Current Sinking |
|
Voltage Range |
10～30V DC |
5～30V DC |
|
|
Sensor Current |
1～50 mA |
0～200 mA |
|
|
Switch Rating |
1.5 W Max. |
6 W Max. |
|
|
Consumption |
/ |
3 mA Max. |
|
|
Voltage Drop |
2.65V Max.@50mA |
0.5V Max.@200mA |
|
|
Leakage Current |
90 μA Max.@24V |
0.01 mA Max. |
|
|
Indicator |
Red LED |
Red LED |
Green LED |
|
Cable |
Φ2.8, 2C, Grey Oil-Resistant PVC |
Φ2.8, 3C, Grey Oil-Resistant PVC |
|
|
Sensitivity |
40～800 Gauss |
40～800 Gauss |
|
|
Sensor Frequency |
900Hz |
900Hz |
|
|
Temperature |
-10～70℃ |
-10～70℃ |
|
|
Shock |
50G |
50G |
|
|
Vibration |
9G |
9G |
|
|
Ingress Protection |
IP68 (BJ-R200810105A-04) |
IP68 (BJ-R200810105A-04) |
|
|
Protection Circuit |
Surge Suppression |
Power Reverse Polarity; Surge Suppression |
|
|
CE Certificate NO. |
E8A 17 04 53334 007 |
E8A 17 04 53334 008 |
|
|
CNEx Certificate NO. |
CNEx21.2238X |
CNEx21.2239X |
|
|
RoHS2.0 NO. |
RoHS 2011/65/EU & (EU) 2015/863 |
||
|
Reach NO. |
(EC) N 1907/2006 (REACH) |
||
Now the price of heavy duty magnetic reed switch is reasonable, if you have needs to buy heavy duty reed switch, please contact us.
