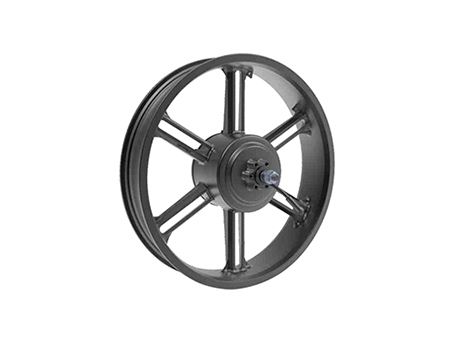

DGW25R Ebike Brushless Motor Wheel
Prix : 200-2000
This kind of motor is high power brushless gear hub motor, it provides 750W~1000W rated power and support 90nm max torque.
Main parameter of DGW25R Ebike Brushless Motor
|
specification |
parameter |
|
Driving position |
Rear |
|
Wheel size |
20in-28in |
|
Spoke |
36holes 12G |
|
Rated power |
750W |
|
Rated voltage |
36V~48V |
|
Max.torque |
≥90N.m |
|
Efficiency |
≥80％ |
|
Cable side |
Left |
|
Number of magnet |
20 |
|
Reduction gear ratio |
1: 5 |
|
Installation dimension |
175mm~190mm |
|
Inside speed sensor |
1~6 |
|
Hall sensor |
With/Without |
|
Free wheel |
Cassette 9-10S/ |
|
Brake |
Disc-brake/V-brake |
|
Classification of waterproof |
IPX5 |
|
Weight |
4.9Kg |
As one of the most professional electric bike motor suppliers, we provide powerful hub motor, ebike motor china, direct drive motor ebike, direct drive hub, direct drive hub motor, ebike direct drive, 750w electric motor, bldc ebike motor, hub drive motor and etc. Want to know more? Please contact us.
