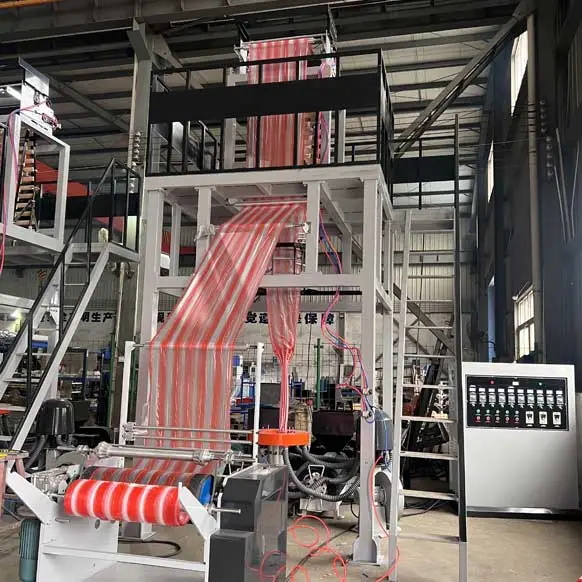

DOUBLE COLOR FILM BLOWING MACHINE
DOUBLE COLOR FILM BLOWING MACHINE
Double color strip film blowing machine is used to blow all kinds of low density polyethylene (LDPE), high density polyethylene (HDPE) color strip plastic film. Widely used in food, fruit, clothing, textiles, daily necessities and other civil and industrial packaging, without printing can achieve color.
FEATURES
FEATURES OF DOUBLE COLOR FILM BLOWING MACHINE
Features of Double Color Film Blowing Machine
The material of barrel screw is 38crmoal and nitgennitto with wear resistance.
Two extruder for the same mold head supply, special mold head structure, different colors of the master material can combine different color strip film.
The maze type wind ring, uniform air volume.
Torque motor is adopted to maintain the appropriate winding tension, smooth and convenient to change.
SPECIFICATION
SPECIFICATION OF DOUBLE COLOR FILM BLOWING MACHINE
|
Model |
SJ-45×2/FM600 |
SJ-50×2/FM800 |
|
Screw diameter(mm) |
45mm×2 |
50mm×2 |
|
Screw L/D Ratio |
L/D28: 1 |
L/D28: 1 |
|
Screw rotation |
10-100r/min |
10-100r/min |
|
Power of main motor |
15kw |
18.5kw |
|
Max.Extrude Output |
35kg/h |
50kg/h |
|
Single-face Thickess of film |
0.006-0.10mm |
0.006-0.10mm |
|
Max Film Folding Dia. |
600mm |
800mm |
|
Lifting Range of Auxiliary Machine |
700mm |
700mm |
|
Total Power |
26kw |
32kw |
|
Machine weight |
2200kg |
2600kg |
|
Overall Dimension(L*W*H) |
4000×2000×2800mm |
4600×2300×3800mm |
As a packaging machine supplier, we will do our best to meet all the needs of customers.
