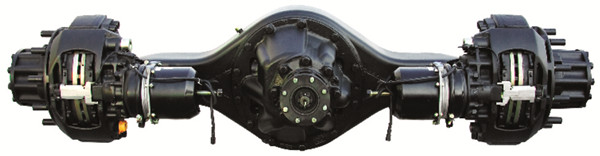

Drum/Disc Brake Rear Axle
Quantité : 30000
| Model | CH15HB | ||
| Nominal Load(Kg) | 13000 | ||
| Wheel Tread(mm) | 1860 | ||
| Max. Troque Output (N.m) | 45000 | ||
| Housing Spec.(mm*mm) | 145*165*14 | ||
| Ratio | 2.928/3.071/3.25/3.545/3.909/4.333/4.875/5.571 | ||
| Drum Brake Spec.(mm) | ∮410*220 | ||
| Disc Brake Spec | 22.5" | ||
| Axle Weight(Kg) | 720(Drum Brake)650(Disc Brake) | ||
| Matching Model | 12~13.7M Bus | ||
| CH15HB Performance Features | |||
| 1.Korean-Made Gear Sets ensure Low Noise. | |||
| 2.Low Weight, Economic Fuel Consumption. | |||
| 3.Efficient Drive Unit meets Torque Requirement of Euro IV Engine. | |||
| 4.Various ratio makes reasonable Vehicle Motivity. | |||
| 5.High-Frequency Quenched Spindle, convenients for Rim disassembling. | |||
| 6.Stamping Welding Structure, most domestic Suspension Matchable. | |||
| 7.Optional Caliper according to different demand. | |||
| 8.Optional ASA according to different demand. | |||
| 9.Standard ABS enhanced Vehicle Stabilization and Controllability. | |||
