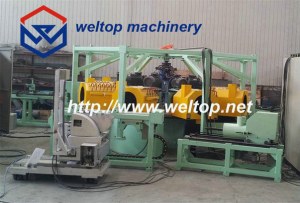

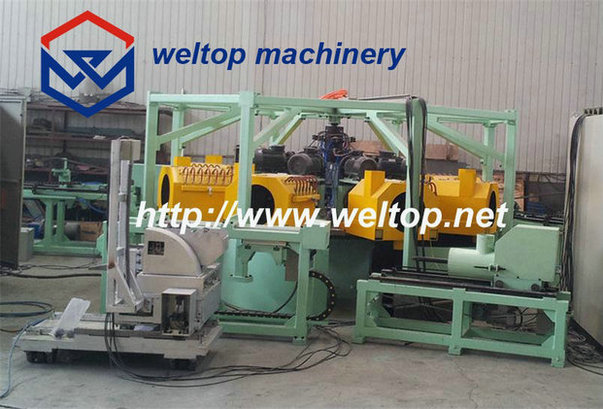

Eight-Station Cylinder Sleeve Centrifugal Casting Machine
Summary
Eight-station cylinder sleeve centrifugal casting machine is used for casting of cylinder sleeve.The complete equipment is made up of rotary working platform，the automatic cleaning device，the automatic spraying device，the automatic pouring device，Pipe pulling device， mold cooling system and temperature measuring device .
It has the following features
1. A high degree of automation
2. Occupying less area.
3. High productivity.
It is propitious to large-lot production of cylinder sleeve.
Technical specification
|
name of parameter: |
parameter values |
|
Turntable diameter |
2500 mm |
|
Number of station |
8 |
|
Rotation power of motor |
4 Kw |
|
Mold rotation diameter |
Ø420 mm |
|
Casting maximum diameter |
Ø120 mm |
|
Casting maximum length |
300-600mm |
|
Speed of mold |
0~1600 rpm |
|
Main machine power of motor |
5.5 kw |
|
Centre-to centre spacing between the ground and mold |
1000 mm |
