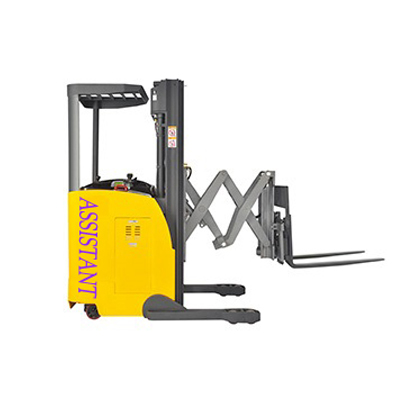

Electric Fork Reach Truck
Quantité : No limited Prix : 50-150000 USD
CQDH18C(Double Scissor)
Parameters
Model |
|
CQDH18C(Double Scissor) |
CQDH18C(Double Scissor) |
Drive type |
|
battery |
battery |
Capacity/Rated load |
Q(kg) |
1000 |
1000 |
Load centre distance |
c(mm) |
600 |
600 |
Load distance, centre of drive axle to fork |
x(mm) |
123 |
123 |
Tyre size, front |
mm |
280×82+160x60x2 |
280×82+160x60x2 |
Tyre size, rear |
mm |
125×82(4) |
125×82(4) |
Wheels, number front rear(x=driven wheels) |
|
1x+2/4 |
1x+2/4 |
Tilt of mast/fork carriage forkward/backward |
Grad |
2-5 |
2-5 |
Height,mast lowered |
h1(mm) |
2125/2375/2625 |
2185/2345/2505/2675/2840 |
Free lift |
h2(mm) |
~ |
1575/1700/1825/2000/2125 |
Max.lift height |
h3(mm) |
3000/3500/4000 |
4500/5000/5500/6000 |
Height, mast extended |
h4(mm) |
3000/3500/4000 |
4500/5000/5500/6000/6500 |
Height of overhead guard |
h6(mm) |
2246 |
2246 |
Length to face of forks |
l2(mm) |
1726 |
1750 |
Overall length |
l1(mm) |
2585 |
2609 |
Overall width |
b1/b2(mm) |
1298/1040 |
1298/1040 |
Fork Dimension |
s/e/l(mm) |
40/100/1070 |
40x100x1070 |
Reach distance |
l4(mm) |
1200 |
1200 |
Fork height, lowered |
h8(mm) |
130 |
130 |
Distance of “X”(see below diagram) |
mm |
450 |
450 |
Overall length(excluding the fork) |
mm |
2023 |
2023 |
Ground clearance, centre of wheelbase |
m2(mm) |
49 |
49 |
Aisle width for pallets 1000×1200 croossways |
Ast(mm) |
3110 |
3131 |
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
3197 |
3220 |
Turning radius |
Wa(mm) |
1848 |
1848 |
Travel speed, laden/unladen |
Km/h |
6.5/7 |
6.5/7 |
Lift speed, laden/unladen |
m/s |
0.2/0.3 |
0.2/0.3 |
Lowering speed, laden/unladen |
m/s |
0.32/0.312 |
0.32/0.312 |
Battery voltage,nominal capacity K5 |
V/Ah |
36/700 |
36/700 |
Battery weight |
Kg |
810 |
810 |
Battery dimensions l/w/h |
mm |
978x395x765 |
978x395x765 |
Service weight(with battery) |
kg |
3460/3510/3560 |
3700/3800/3900/4000/4100 |
If you want to know more types of reach pallet stacker, please visit our website.
Now the price of electric forklift china is affordable, anything you need, please leave us a message.
Personne à contacter : Master Warehouse , +86 021 65457088
