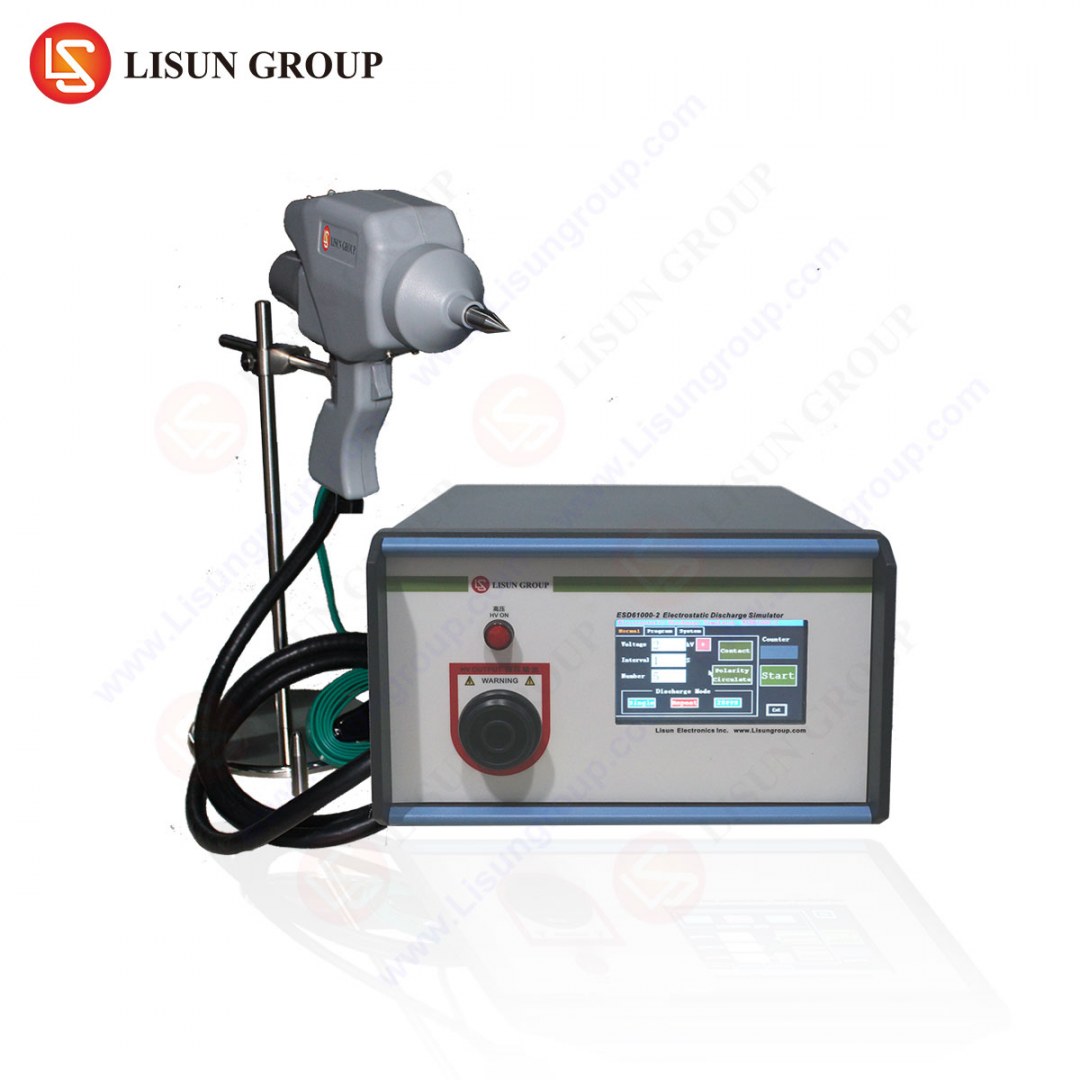

Electrostatic Discharge Simulator
Prix : 1,00 €
Basic Info.
Model NO.
ESD61000-2
After-sales Service
Perfect
Warranty
24months
Trademark
LISUN
Origin
China
Product Description
ESD simulator guns (Electrostatic Discharge Generator/Electrostatic Gun/ESD Guns) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322.
What is a ESD test?
The static electricity generated by the human body to the object or between two objects may cause the electrical and electronic equipment circuits to malfunction or even be damaged. The ESD generator is designed for the withstanding ESD performance measurement for the assessment of electrical and electronic equipment. ESD61000-2/ESD61000-2A has a LCD touch screen in both English and Chinese.
What is an esd simulator gun used for?
Electrostatic discharge simulator is highest electrostatic voltage can be up to 30 kv, which is enough to cover the most severe standard grade of electrostatic voltage requirement (the voltage requirements of the grade 4 air discharge electrostatic is 15 KV). The ESD test gun can be used for the most of electrical and electronic equipment for electrostatic discharge test, and also can ensure comparability and reproducibility of test.
Specifications:
| Product Model | ESD61000-2 | ESD61000-2A |
| Output Voltage | 0.1~20kV±5% | 0.1~30kV±5% |
| Polarity | Positive/Negative | Positive/Negative |
| Energy Storage Capacitance | 150pF±10% (Replaceable) | 150pF±10% (Replaceable) |
| Discharge Resistor | 330Ω±5% (Replaceable) | 330Ω±5% (Replaceable) |
| Current Rise Time | 0.6~1ns | 0.6~1ns |
| Testing Functions | Single, Count, 20pps, Air, Contact, IEC level | Single, Count, 20pps, Air, Contact, IEC level |
| Trigger Mode | MANUAL/AUTO | MANUAL/AUTO |
| Numbers of Discharge | 1~9999 | 1~9999 |
| Repetition | 0.05s~99.99s | 0.05s~99.99s |
| Working Power | AC220V (Option 110V) ±10%, 50/60Hz | AC220V (Option 110V) ±10%, 50/60Hz |
Calibrate Report:
| Output Voltage (kV) | First Peak Current (A) | Current at 30ns (A) | Current at 60ns (A) | Rise Time (ns) |
| 2 | 7.29 | 4.10 | 2.20 | 0.93 |
| 4 | 15.40 | 7.90 | 4.30 | 0.97 |
| 6 | 23.20 | 12.10 | 6.50 | 0.97 |
| 8 | 29.40 | 16.20 | 9.30 | 0.89 |
| -2 | 7.39 | 3.50 | 2.30 | 0.92 |
| -4 | 15.50 | 7.70 | 4.30 | 0.89 |
| -6 | 23.40 | 11.90 | 6.30 | 0.90 |
| -8 | 31.80 | 16.10 | 8.20 | 0.90 |
