ER34615M Li-SOCl2 Cylindrical Battery
High power and high voltage Lithium Thionyl Chloride ER34615M Lithium Battery 14000mAh 10 Years Shelf Life. Non-rechargeable Li-SOCl2 3.6 V battery for smart metering,medical device.
As a er34615m battery suppliers,we provide Lithium Thionyl Chloride d cell batteries and li socl2 d cell batteries.
Advantage of Er34615m Lithium Battery
High and Stable Voltage
Energy Density up to 893Wh/L
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)
Specification of ER34615M Li-SOCl2 Cylindrical Battery
Electrical characteristics |
Open circuit voltage (at 25°C) |
≥3.65V |
Nominal capacity |
14000mAh |
|
(At +25°C, battery discharged at continuous current 20mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage.) |
||
Maximum continuous current |
2000mA |
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity.) |
||
Maximum pulse discharge current |
4000mA |
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) |
||
Storage (recommended) |
≤+30°C |
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
Operating temperature range |
-55°C~+85°C |
|
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) |
||
Physical characteristics |
Diameter |
32.9±0.3mm |
Height |
61.4±0.8mm |
|
Typical weight |
108.0g |
|
Li metal content |
4.03g |

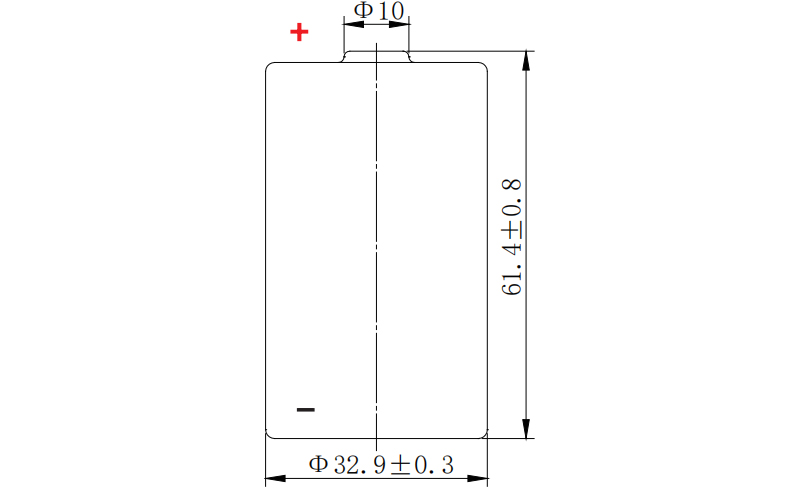

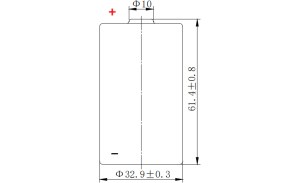

Drawing of ER34615M Li-SOCl2 3.6V Battery
The company's main china lithium batteries wholesale include Li-SOCl2 cylindrical batteries, Li-MnO2 cylindrical batteries, Li-MnO2 pouch cells, and Ultra-pulse capacitors.
